Mfr Part #:

NEMA23-17-01SD-AMT112S

Name: NEMA23-17-01SD-AMT112S
Brand: CUI Devices
SKU: NEMA23-17-01SD-AMT112S

Mfr Name: CUI Devices

Description:

STEPPER MOTOR W/ INCREMENTAL ENC

Stock on Request

NEMA23-17-01SD-AMT112S Description

Short technical summary and product information.

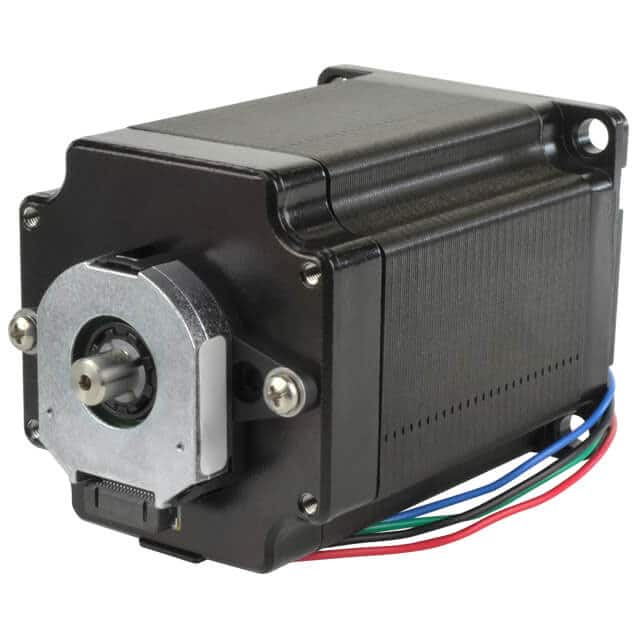

STEPPER MOTOR W/ INCREMENTAL ENC

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Stepper Motors
Manufacturer Name	CUI Devices
Accuracy	±0.2%
Coil Resistance	2.8 Ω
Coil Type	Bipolar
Current Rating (Amps)	1.4 A
Diameter	0.250" (6.35mm)
Features	Integrated Encoder, Flatted Shaft
Length	0.811" (20.60mm)
Mounting Hole Spacing	1.819" (46.20mm)
NEMA Frame Size	23
Operating Temperature	-20°C ~ 50°C
Size	Square - 2.252" x 2.252" (57.20mm x 57.20mm)
Step Angle	1.8°
Steps per Revolution	200
Termination Style	Connector
Torque	85 / 600.23
Voltage	24 ~ 80VDC
