| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

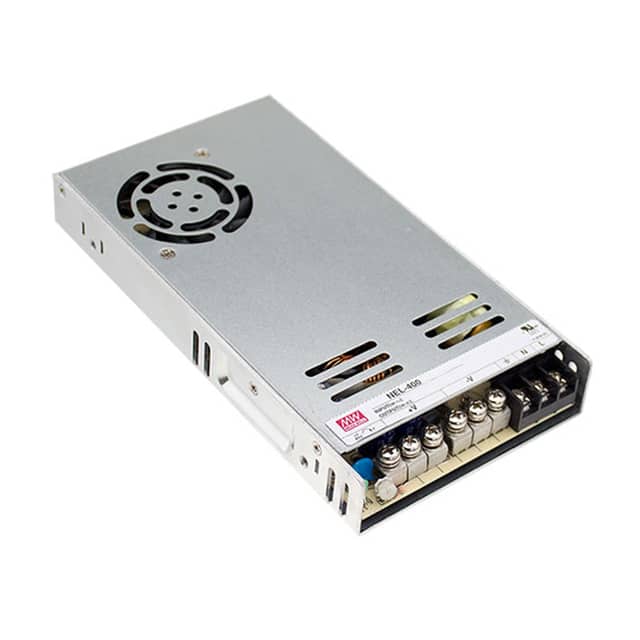

This Mean Well USA NEL-400-5 is an enclosed AC/DC converter with conformal coating, delivering 400W of power and a 5V output voltage at 80A current. It offers adjustable output and universal input, with an efficiency of 84% and an isolation voltage of 3 kV.
The converter is designed for chassis mounting and operates within a temperature range of -20°C to 60°C, with derating applied. Its dimensions are 215.0mm in length, 115.0mm in width, and 30.0mm in height. The unit is approved by cURus and is suitable for ITE (Commercial) applications.
Compliance includes RoHS3 status, MSL 1 Unlimited, and REACH Unaffected. The part number is NEL-400-5 and it is also known by Digi-Key part number 1866-3529-ND.
The output voltage is 5V.
The maximum output current is 80 A.
The power rating is 400W.
The operating temperature range is -20°C to 60°C, with derating.
It is designed for chassis mount.
The dimensions are 215.0mm x 115.0mm x 30.0mm.
The RoHS status is RoHS3 Compliant.
