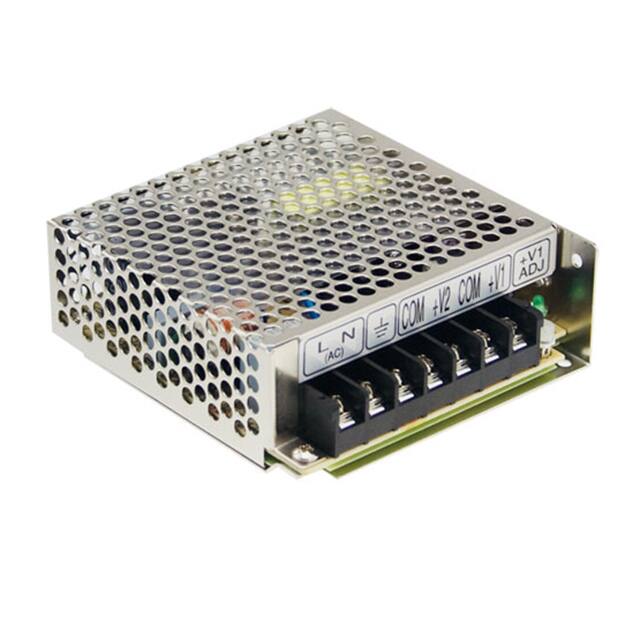

The Mean Well NED-35A is a dual rail enclosed AC/DC power supply designed for ITE (Commercial) applications. This discontinued model provides two output voltages: 5VDC on Channel 1 and 12VDC on Channel 2, delivering a total of 32W of power. It accepts a wide universal AC input range of 85 to 264VAC.
Key electrical specifications include a typical efficiency of 78% and rated currents of 4A for the 5V output and 1A for the 12V output. The unit is cooled by free air convection and includes protections for short circuit, overload, and over voltage. Its dimensions are 99.0mm in length, 97.0mm in width, and 36.0mm in height.
This product is certified by CB and cURus approval agencies. Due to its discontinued status, users are advised to consult the datasheet for detailed specifications and to contact the manufacturer for assistance in identifying a suitable alternative. The NED-35A is suitable for various commercial electronic equipment requiring stable dual rail power.
Mounting is via chassis mount, and the enclosed type provides a degree of protection. The operating temperature range is -20°C to 60°C with derating. While RoHS3 compliant, MSL is rated 1, and REACH is unaffected, these compliance details are based on available data and may require verification.
The Mean Well NED-35A provides a 5VDC output on Channel 1 and a 12VDC output on Channel 2.
The NED-35A has a total power output of 32W.
The NED-35A accepts a universal input voltage range of 85 to 264VAC.
The operating temperature range for the NED-35A is -20°C to 60°C, with derating applied.
The NED-35A is designed for chassis mounting.
The NED-35A includes protections for short circuit, overload, and over voltage.
