| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200,000 pcs
|
200000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| SVHC Present | |
| Slew Rate | |
| Supply Current |

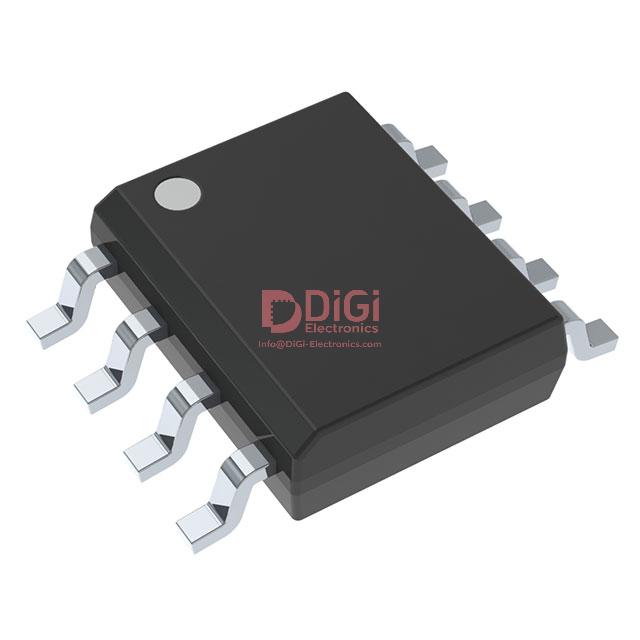

The Texas Instruments SA5534ADR is a versatile general-purpose operational amplifier designed for a wide range of electronic applications. It features a gain bandwidth product of 10 MHz and a slew rate of 13V/µs, enabling efficient signal amplification.
This op-amp operates with a supply voltage span from 10V to 30V and has an input offset voltage of 500 µV and an input bias current of 500 nA. The output current capability is 38 mA per channel.
Packaged in an 8-SOIC (0.154", 3.90mm Width) surface-mount package, the SA5534ADR is suitable for integration into compact circuit designs. It operates within a temperature range of -40°C to 85°C, making it robust for various environmental conditions.
Key specifications include a 1-circuit design, general-purpose amplifier type, and a supply current of 4mA. The SA5534ADR is a reliable choice for engineers seeking a high-performance operational amplifier for their projects.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 10V to 30V.
The package type is 8-SOIC (0.154", 3.90mm Width).
The operating temperature range is -40°C to 85°C.
The gain bandwidth product is 10 MHz.
The slew rate is 13 V/µs.
The input bias current is 500 nA.
The NE5534DG contains 1 amplifier circuit.
