| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,147 pcs
|
3147 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) |

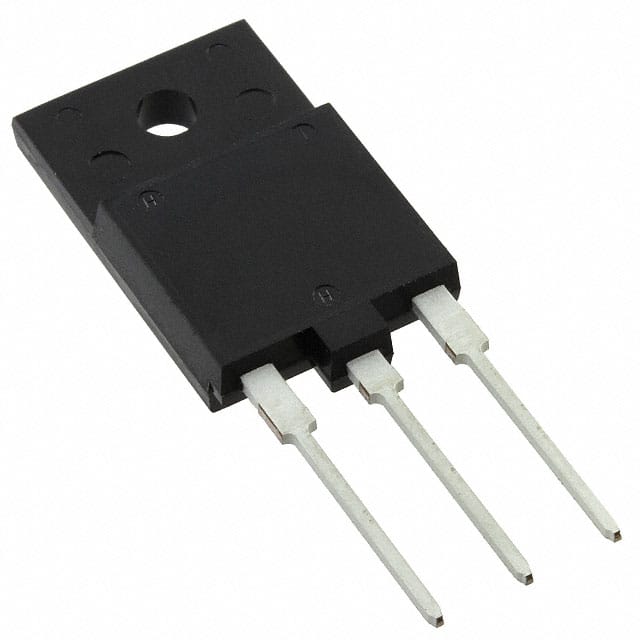

The NDUL03N150CG is an N-Channel Power MOSFET manufactured by ON Semiconductor. This component is designed for high-voltage applications, offering a maximum drain-to-source voltage (Vdss) of 1500V.
Key electrical characteristics include a continuous drain current of 2.5A at 25°C (Ta) and a maximum on-resistance (Rds On) of 10.5 Ohms at a gate-source voltage (Vgs) of 10V. The input capacitance (Ciss) is rated at 650 pF at 30V, and the total gate charge (Qg) is a maximum of 34 nC at 10V.
This MOSFET is housed in a TO-3P(L) package, suitable for through-hole mounting. It has a maximum channel temperature of 150°C and a power dissipation rating of 3W at 25°C ambient temperature and 50W at 25°C case temperature. The gate-to-source voltage is rated up to ±30V.
This device is suitable for various power switching applications where high voltage blocking capability is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage (Vdss) is 1500V.
The continuous drain current is 2.5A at 25°C ambient temperature.
The maximum on-resistance (Rds On) is 10.5 Ohms when the gate-source voltage is 10V and the drain current is 1.25A.
It is supplied in a TO-3PL package.
The maximum channel temperature is 150°C.
The RoHS status is RoHS3 Compliant.
