| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,530 pcs
|
1530 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request | |
|
398 pcs
|
398 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) |

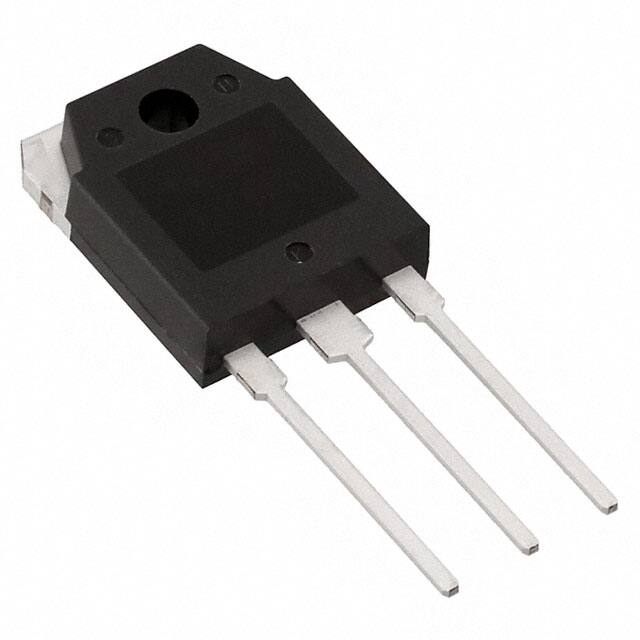

This NDTL03N150CG MOSFET from ON Semiconductor is an N-Channel device with a high drain-to-source voltage rating of 1500V. It is designed for through-hole mounting in a TO-3PL package.
Key electrical characteristics include a maximum Rds On of 10.5 Ohms when driven at 10V with a 1.25A drain current. The device has a maximum gate charge of 34 nC at 10V and an input capacitance of 650 pF at 30V. The maximum continuous drain current is 2.5A at ambient temperature, with a maximum power dissipation of 140W at case temperature.
The operating temperature range is from -55°C to 150°C (TJ). This MOSFET is suitable for applications requiring high voltage switching and power control.
It is packaged in a TO-3PL case and designed for through-hole mounting, making it suitable for various power electronics designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-to-source voltage (Vdss) for the NDTL03N150CG is 1500V.
The maximum continuous current for the NDTL03N150CG is 2.5A at ambient temperature.
The Rds On is a maximum of 10.5 Ohms at 1.25A drain current and 10V gate-source voltage.
The NDTL03N150CG is designed for through-hole mounting.
The NDTL03N150CG comes in a TO-3PL package.
The operating temperature range is 150°C (TJ).
