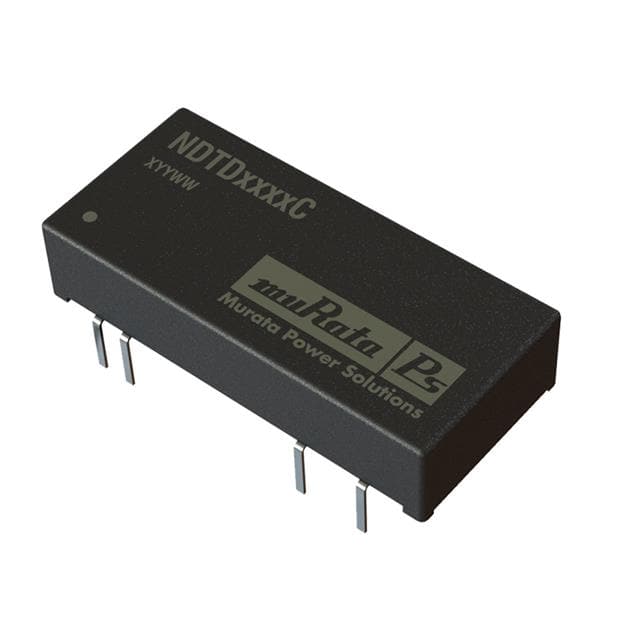

NDTD0515C Isolated DC-DC converter module from Murata Power Solutions providing ±15V dual outputs at 25mA each from a 5V nominal input. Rated for 3W output power with 1kVDC isolation.
Mfr Part #:

NDTD0515C

Available from 2 distributors
Mfr Name: Murata
Murata
Isolated DC-DC converter module from Murata Power Solutions providing ±15V dual outputs at 25mA each from a 5V nominal input. Rated for 3W output power with 1kVDC isolation.
✓ Total Stock: 4 pcs
$ Price Range: $17.61

NDTD0515C Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NDTD0515C Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Efficiency
Height
Length
Mounting Type
Number of Outputs
Number of Pins
Operating Temperature
Power (Watts)
Tape & Reel
Type
Voltage
Width
View Similar Products (0)

NDTD0515C Description

Short technical summary and product information.

The Murata Power Solutions NDTD0515C is an isolated DC-DC converter module from the NDTD series, delivering 3W of output power. It provides dual ±15V outputs at ±25mA per output from a nominal 5V input (4.5V to 9V range). The converter features a minimum efficiency of 75% at full load with external input/output capacitors. Input-to-output isolation is rated at 1kVDC, with line and load regulation both less than 1%.



Designed for commercial ITE applications, the NDTD0515C operates over a temperature range of -40°C to 85°C. It is housed in a 24-DIP (600 mil, 8 leads) through-hole package measuring 32.3mm x 14.7mm x 6.9mm. The module's industry-standard footprint facilitates easy integration into power supply designs requiring isolated dual-rail outputs.

NDTD0515C Quick Information

Product Type: DC-DC Converter
Canonical Name: Murata Power Solutions NDTD0515C Isolated DC-DC Converter, ±15V Output, 3W
Subcategory: Isolated DC-DC Converter

NDTD0515C Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

NDTD0515C Estimated Pricing

Qty Low High
15+ $17.61 $17.61

Estimated market price range - modelled values for guidance only, not live distributor offers.

NDTD0515C Features

  • Isolated dual output ±15V DC-DC converter.
  • 3W output power with 75% efficiency.
  • 1kVDC input-to-output isolation.
  • Wide input range 4.5V to 9V.
  • Through-hole DIP-24 package.

NDTD0515C Applications

  • Ideal for industrial control systems.
  • Used in dual-rail analog circuits.
  • Suitable for test and measurement equipment.
  • For ITE commercial applications.

NDTD0515C FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range for the NDTD0515C?

4.5 V to 9 V, with a nominal input of 5 V.

What are the output voltages and currents?

±15 V dual outputs at ±25 mA per output.

What is the isolation voltage of this converter?

1 kVDC input-to-output isolation.

What package does the NDTD0515C come in?

24-DIP Module (600 mil, 8 Leads) with through-hole mounting.

What is the operating temperature range?

-40°C to 85°C.

Is the NDTD0515C RoHS compliant?

It is listed as RoHS3 Compliant, but this status is unverified. Refer to manufacturer documentation for certification.

What is the efficiency of this converter?

Minimum 75% at full load with external input/output capacitors.
