Mfr Part #:

NDSH25170A

Q: What is the maximum junction temperature?

The maximum junction temperature is 175°C.

Q: Does this diode have reverse recovery time?

No, this diode has no reverse recovery time.

Q: What is the mounting type?

The mounting type is Through Hole.

Q: What is the forward voltage at 25A and 25°C?

The forward voltage is 1.75 V at IF = 25 A, TJ = 25°C.

Available from 2 distributors

Mfr Name: On Semiconductor

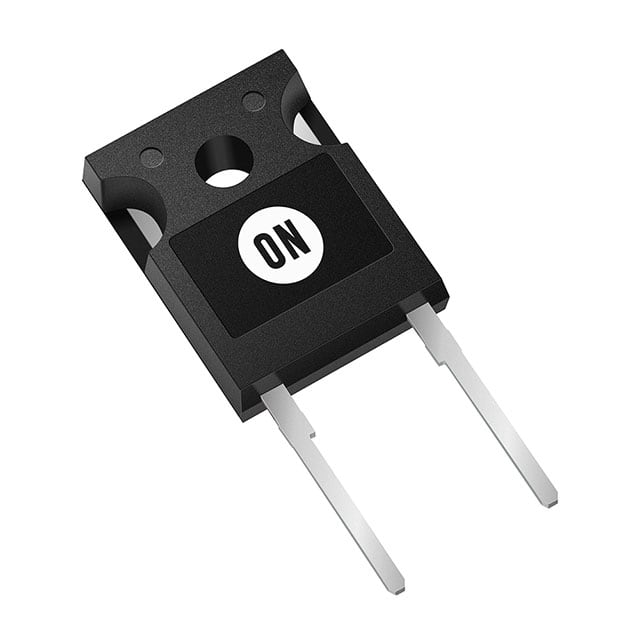

The On Semiconductor NDSH25170A is a Silicon Carbide Schottky Diode designed for high-performance power applications. It features a 1700V reverse voltage rating and a 25A continuous forward current.

✓ Total Stock: 1,650 pcs

$ Price Range: $0.99

NDSH25170A Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	1,650 pcs On Request	1650 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
HK XINYUANXIN ELECTRONIC TECH LIMITED ✓ Non-Authorised Inventory information	On Request On Request	On Request	On Request	1	On Request	On Request	On Request	On Request	On Request

NDSH25170A Description

Short technical summary and product information.

The NDSH25170A from On Semiconductor is a Silicon Carbide (SiC) Schottky Diode, representing the next generation of power semiconductor technology. This diode offers superior switching performance and higher reliability compared to traditional silicon diodes, with no reverse recovery current and temperature-independent switching characteristics.

Key electrical specifications include a peak repetitive reverse voltage of 1700V and a continuous rectified forward current of 25A at a case temperature below 153°C. It boasts a maximum junction temperature of 175°C and a low thermal resistance of 0.39°C/W. The diode exhibits a forward voltage of 1.75V at 25A and 25°C, and a reverse current of only 40µA at 1700V and 25°C.

This device is housed in a TO-247-2L package, suitable for through-hole mounting. Its SiC technology enables system benefits such as highest efficiency, faster operating frequency, increased power density, reduced EMI, and smaller system size and cost. Applications include SMPS, solar inverters, and UPS systems.

The NDSH25170A is RoHS compliant and Halogen/BFR free, making it suitable for environmentally conscious designs.

NDSH25170A Quick Information

Product Type: Silicon Carbide Schottky Diode

Canonical Name: On Semiconductor NDSH25170A Silicon Carbide Schottky Diode

Subcategory: Schottky Diode

NDSH25170A Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Lead Free
