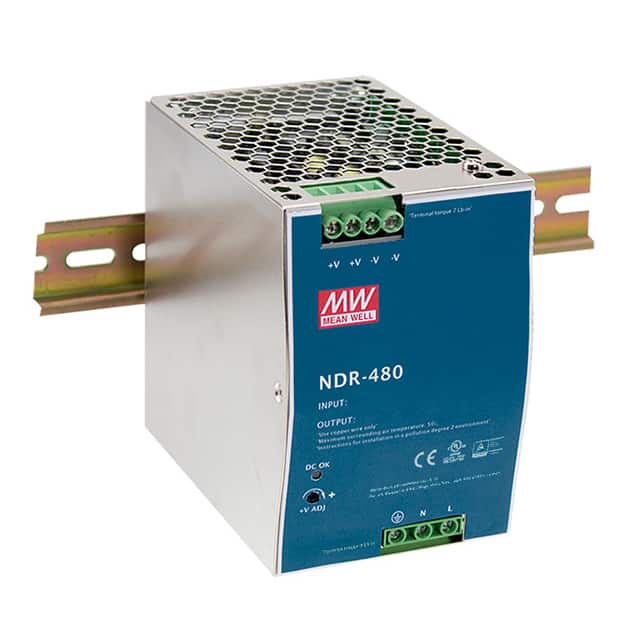

The Mean Well NDR-480-48 is a robust AC/DC power supply designed for industrial and ITE (Commercial) applications. It features a 48Vdc output voltage and a maximum output current of 10A, providing a total power output of 480W. The unit accepts a wide input voltage range from 90 to 264Vac, ensuring compatibility in various power environments.
Key electrical specifications include a high efficiency of 92.5% and a single output. The power supply is built with features such as adjustable output, active PFC (Power Factor Correction), and universal input. It offers an isolation voltage of 3 kV and operates within a temperature range of -20°C to 70°C, with derating applied at higher temperatures.
Mechanically, the NDR-480-48 is designed for easy installation on a TS35/7.5 or 15 DIN rail, with dimensions of 128.5mm in length, 85.5mm in width, and 125.2mm in height. It is an enclosed type power supply, cooled by free air convection, and features a fan-less design for quiet operation. Standard protections include short circuit and over load capabilities.
Compliance is met with UL 508 and 62368-1 standards, and it holds approvals from CB, CE, cULus, and TUV. The RoHS status is listed as RoHS3 Compliant, MSL is 1 Unlimited, and REACH status is Unaffected, though these compliance details are noted as low confidence.
The Mean Well NDR-480-48 has an output voltage of 48Vdc and a maximum output current of 10A.
The NDR-480-48 power supply has a maximum power output of 480W.
The Mean Well NDR-480-48 accepts a universal input voltage range of 90 to 264Vac.
The operating temperature range for the NDR-480-48 is -20°C to 70°C, with derating applied.
The NDR-480-48 is designed for DIN rail mounting.
The NDR-480-48 is certified to UL 508 and 62368-1 standards and holds CB, CE, cULus, and TUV approvals.
