| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
83 pcs
|
83 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AC Voltage | |
| Applications | |
| Approval Agency | |
| Current | |
| DC Voltage | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Type | |
| Input Voltage (AC) | |
| Input Voltage DC | |
| Isolation Voltage (Input to Output) | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Rated Current (Output) | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

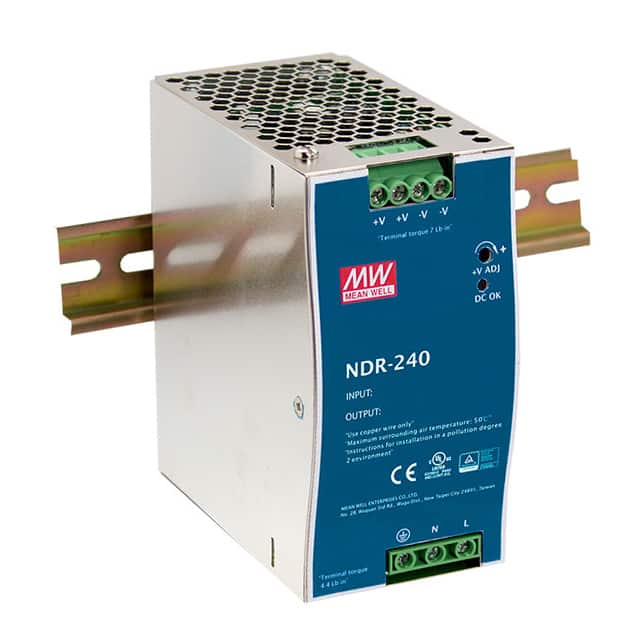

The Mean Well NDR-240-24 is a high-efficiency AC/DC power supply designed for DIN rail mounting in industrial and ITE applications. This enclosed unit delivers a single 24V output at up to 10A with a maximum power rating of 240W.
The power supply accepts a universal AC input of 90 to 264 VAC or DC input of 127 to 370 VDC with a frequency range of 47 to 63 Hz. It achieves an efficiency of 88.5% and is cooled by free air convection over the temperature range of -20°C to 70°C (with derating). Protection features include constant current limiting for overload, over voltage shutdown, and over temperature auto-recovery. The output voltage is adjustable from 29 to 33V.
The NDR-240-24 is housed in a 63mm wide metal enclosure suitable for TS-35/7.5 or TS-35/15 mounting rails. It carries safety approvals including cULus (UL 508), TUV (EN 62368-1), CB, and CE. Typical applications include industrial control systems, semiconductor fabrication equipment, factory automation, and electro-mechanical machinery.
The output voltage is 24V with a rated current of 10A, providing 240W of power.
The power supply accepts 90-264 VAC or 127-370 VDC at 47-63 Hz.
The operating temperature is -20°C to 70°C, with derating required at higher temperatures.
The unit is approved to CB, CE, cULus (UL 508), TUV EN 62368-1, BSMI, BIS, and EAC standards.
Yes, it has constant current mode for overload protection, with shutdown and re-power on to recover.
Yes, the output voltage is adjustable from 29 to 33V for the 24V model.
