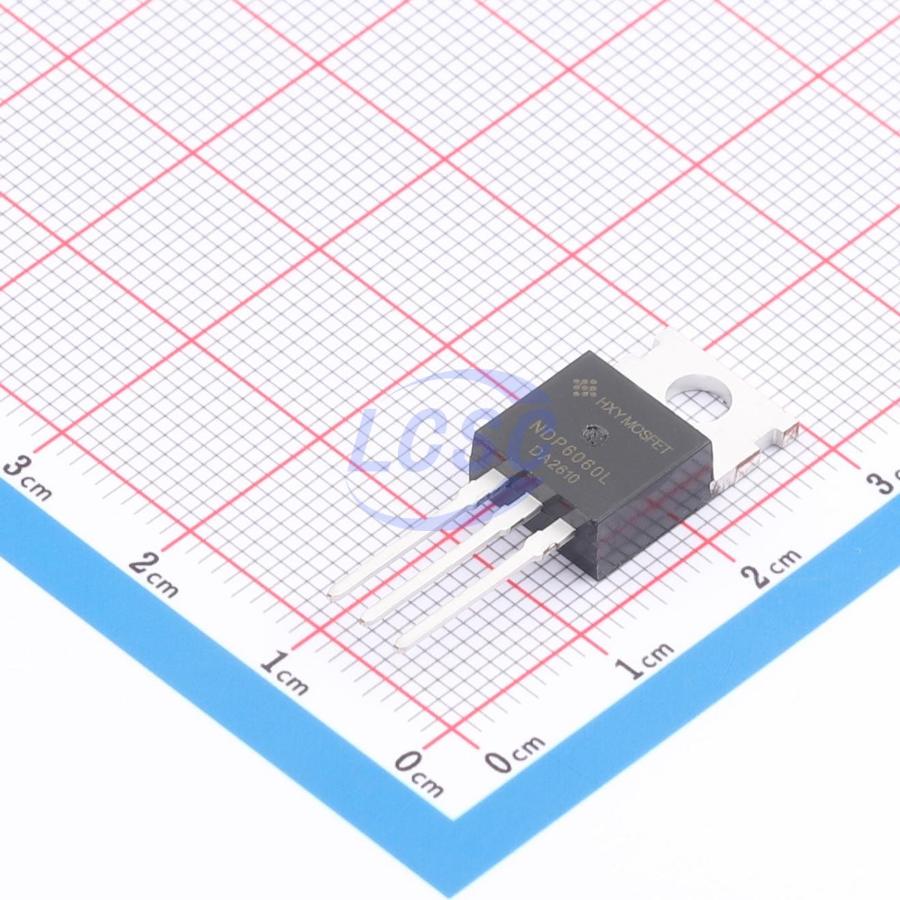

The NDP6060L from ON Semiconductor is an N-Channel enhancement mode power MOSFET. It utilizes a high cell density DMOS technology to achieve low on-state resistance and superior switching performance. This device is suitable for low voltage applications such as automotive, DC/DC converters, and PWM motor controls where fast switching and low power loss are critical.
Key electrical specifications include a drain-source voltage (Vdss) of 60V and a continuous drain current (Id) of 48A at 25°C. The on-resistance (Rds On) is rated at a maximum of 0.025 Ohms at a gate-source voltage (Vgs) of 5V. The gate threshold voltage (Vgs(th)) is a maximum of 2V at 250µA, allowing for operation directly from logic drivers.
This MOSFET is housed in a TO-220-3 package, designed for through-hole mounting. It has a maximum power dissipation of 100W at 25°C and an operating junction temperature range of -65°C to 175°C. The device is Pb-Free and RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (Vdss) for the NDP6060L is 60V.
The NDP6060L has a continuous drain current of 48A at 25°C.
The maximum on-resistance (Rds On) for the NDP6060L is 0.025 Ohms at 24A drain current and 10V gate-source voltage.
The gate threshold voltage (Vgs(th)) for the NDP6060L is a maximum of 2V at 250µA.
The NDP6060L is available in a TO-220-3 package.
The operating temperature range for the NDP6060L is -65°C to 175°C.
