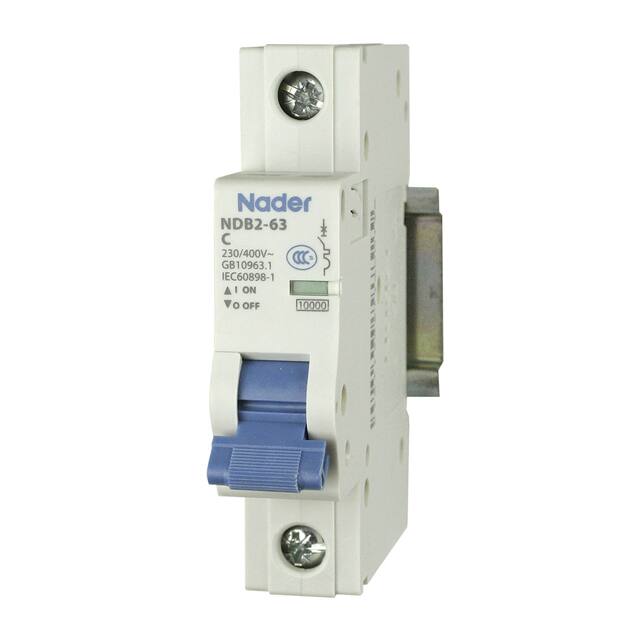

The Nader NDB2-63C63-1 is a single-pole, thermal magnetic mini circuit breaker rated for 63 amps and 240 volts AC. This breaker is designed for supplemental protection applications and is UL1077 listed.
It features a C trip curve, suitable for typical inductive loads, and offers overload and short circuit protection. The breaker is designed for easy wiring with screw clamp terminations and mounts directly onto a 35mm DIN rail.
Key specifications include a 10kA interrupt capacity and a lever actuator. The NDB2-63C63-1 is also rated for 60V DC circuits. Its compact design and DIN rail mounting make it suitable for various industrial and commercial electrical panel applications.
The current rating is 63A.
It supports 240VAC and 60VDC.
It is a 1-pole circuit breaker.
The trip curve is C.
It is a thermal magnetic circuit breaker.
The interrupting capacity is 10kA.
It mounts on a 35mm DIN rail.
