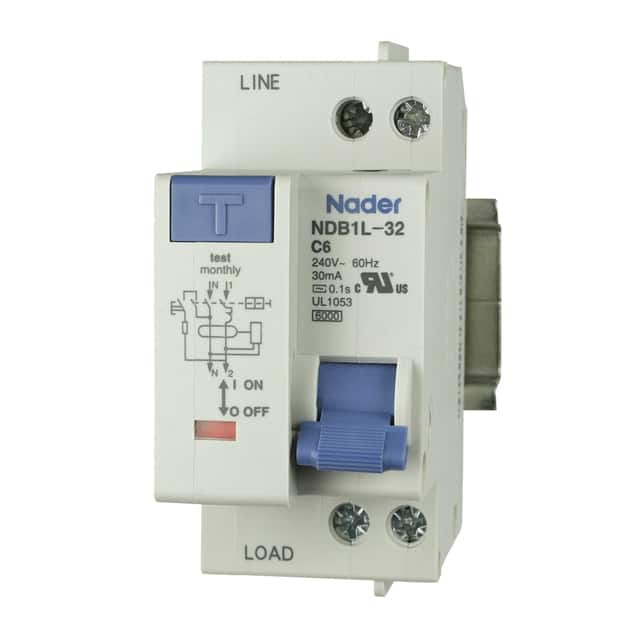

This Nader NDB1L-32C-6-240V is a 6 Amp, 240V AC Ground Fault Circuit Breaker (GFCI) designed for DIN rail mounting. It provides essential short circuit and overload protection.
The breaker features a C trip curve for general-purpose applications, with an instantaneous trip range from 5 to 10 times the rated current. It is UL1053 recognized and has a 4.5kA SCCR rating. The GFCI functionality includes a 30mA earth leakage limit, safely opening the circuit when this threshold is reached. A visual LED indicator provides trip status.
Designed for easy integration, this breaker mounts on a standard 36mm DIN rail and features screw clamp wire terminations. It also includes a convenient push-to-test button for manual verification of its protective functions. The NDB1L series offers reliable protection for various electrical systems.
The current rating is 6 Amps.
The voltage rating is 240V AC.
It is designed for DIN rail mounting.
It is a Ground Fault Circuit Breaker.
The earth leakage trip level is 30mA.
The SCCR rating is 4.5kA.
The trip curve is C.
