| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
57,000 pcs
|
57000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Control Features | |
| Current | |
| Dropout Voltage | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Operating Voltage (Minimum/Maximum) | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| Output Voltage (Minimum/Maximum) | |
| Output Voltage Accuracy | |
| PSRR | |
| Protection Features | |
| Quiescent Current | |
| SVHC Present | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage | |
| Voltage Dropout (Max) |
The NCV8711BMTW500TBG is a CMOS LDO regulator from ON Semiconductor designed for applications requiring low quiescent current and fast transient response. It supports an input voltage range of 2.7 V to 18 V and can source up to 140 mA peak output current. The device features a very low quiescent current of 1 µA, making it ideal for battery-powered, always-on systems.
Key electrical specifications include an output voltage range of 1.2 V to 17 V, a typical dropout voltage of 215 mV at 100 mA, and an output voltage accuracy of ±1%. Protection features include over-current and thermal shutdown. The regulator is stable with small ceramic capacitors and includes a built-in soft start circuit to suppress inrush current.

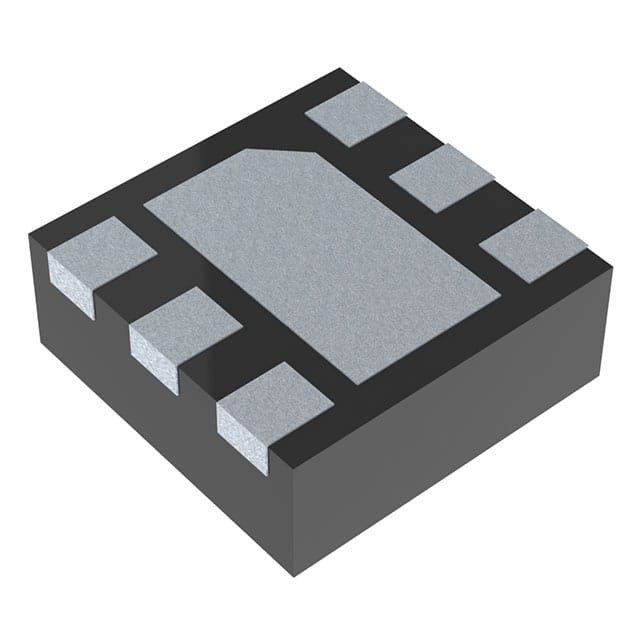

This device is available in a compact 6-WDFNW (2x2) package with surface mount, wettable flank mounting. The NCV prefix indicates suitability for automotive and other applications requiring unique site and control change requirements, with AEC-Q100 qualification and PPAP capability. It also features a Power Good (PG) output signal for power sequencing or microcontroller reset functions (Version B).
Typical applications include body control modules, LED lighting, on-board chargers, and general-purpose automotive systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2.7V to 18V.
The output voltage is fixed at 5V.
The peak output current is 140mA.
The typical quiescent current is 1µA.
The maximum junction operating temperature is 150°C.
It is available in a 6-WDFNW (2x2) package with exposed pad.
It includes over-current and over-temperature protection.
