NCV8184DTRKG The On Semiconductor NCV8184DTRKG is a low dropout tracking voltage regulator. It offers adjustable output and 70 mA source capability.
Mfr Part #:

NCV8184DTRKG

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor NCV8184DTRKG is a low dropout tracking voltage regulator. It offers adjustable output and 70 mA source capability.
✓ Total Stock: 126,790 pcs
$ Price Range: $0.28

NCV8184DTRKG Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
125,000 pcs
On Request
125000 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,790 pcs
On Request
1790 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NCV8184DTRKG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Control Features
Current
Industrial Grade
Medical Grade
Military Grade
Mounting Type
Number of Regulators
Operating Temperature
Output Configuration
Output Type
PSRR
Protection Features
Supplier Device Package
Supplier Package
Voltage
Voltage Dropout (Max)
View Similar Products (0)

NCV8184DTRKG Description

Short technical summary and product information.

The NCV8184DTRKG from On Semiconductor is a monolithic integrated low dropout tracking voltage regulator. It is designed to provide an adjustable buffered output voltage that closely tracks the reference input with an accuracy of ±3.0 mV. This regulator features a 70 mA source capability and a low dropout voltage of 0.35 V typical at 50 mA.



Key electrical characteristics include a wide operating voltage range up to 42 V and low quiescent current. The device incorporates thermal shutdown for protection. Its output is adjustable and positive, with an enable control feature.

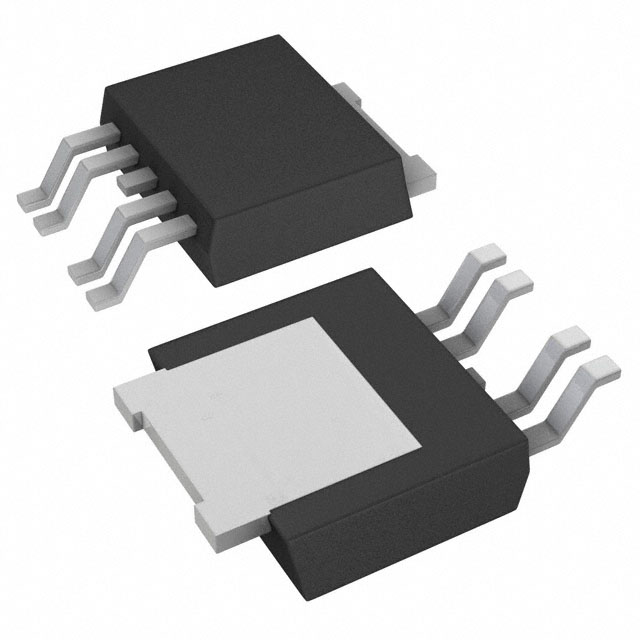

The NCV8184DTRKG is supplied in a DPAK-5 package, suitable for surface mount applications. The operating temperature range is -40°C to 150°C. This part is also noted for its low input voltage tracking performance, functioning down to a VREF of 2.1 V.

NCV8184DTRKG Quick Information

Product Type: Tracking Regulator
Canonical Name: NCV8184DTRKG Tracking Regulator
Subcategory: Linear Voltage Regulators

NCV8184DTRKG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NCV8184DTRKG Estimated Pricing

Qty Low High
1+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

NCV8184DTRKG Features

  • Adjustable positive output voltage.
  • 70 mA maximum source capability.
  • Low dropout voltage.
  • Thermal shutdown protection.
  • Enable control feature.

NCV8184DTRKG Applications

  • Automotive remote sensor voltage tracking
  • Isolated regulator output buffering applications
  • High-side driver for load switching
  • Upgrade module for added current needs
  • Micropower low dropout tracking regulation

NCV8184DTRKG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum output current for the NCV8184DTRKG?

The NCV8184DTRKG has a 70 mA source capability.

What is the output tracking accuracy of the NCV8184DTRKG?

The output tracks within ±3.0 mV of the reference input.

What is the typical dropout voltage for the NCV8184DTRKG?

The typical dropout voltage is 0.35 V at 50 mA.

What is the operating voltage range for the NCV8184DTRKG?

The device operates from 4.0 V to 42 V.

What is the operating temperature range of the NCV8184DTRKG?

The operating temperature range is -40°C to 150°C.

What package type is the NCV8184DTRKG supplied in?

The NCV8184DTRKG is supplied in a DPAK-5 package.

Does the NCV8184DTRKG have thermal shutdown protection?

Yes, the NCV8184DTRKG features thermal shutdown protection.
