| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
165,000 pcs
|
165000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Control Features | |
| Current | |
| High Output Voltage Accuracy | |
| Low Dropout | |
| Mounting Type | |
| Number of Regulators | |
| Operating Input Voltage Range | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| Output Voltage | |
| Output Voltage Range | |
| PSRR | |
| Package Code | |
| Package Description | |
| Protection Features | |
| Quiescent Current | |
| SVHC Present | |
| Supplier Device Package | |
| Thermal Shutdown Protection | |
| Voltage |
The NCV8177AMTW090TCG-A642 is a CMOS LDO regulator from On Semiconductor, capable of delivering 500 mA of output current. It features a fixed output voltage of 0.9V and operates within an input voltage range of 1.6V to 5.5V. This regulator offers a low dropout voltage of 200 mV typical at 500 mA and maintains high output voltage accuracy of ±0.8%.
Designed for applications requiring stable and accurate voltage with low noise, such as RF circuits and automotive infotainment systems, the NCV8177A series provides high Power Supply Rejection Ratio (PSRR). It includes over-current and thermal shutdown protection features, with the thermal shutdown threshold set at 175°C.

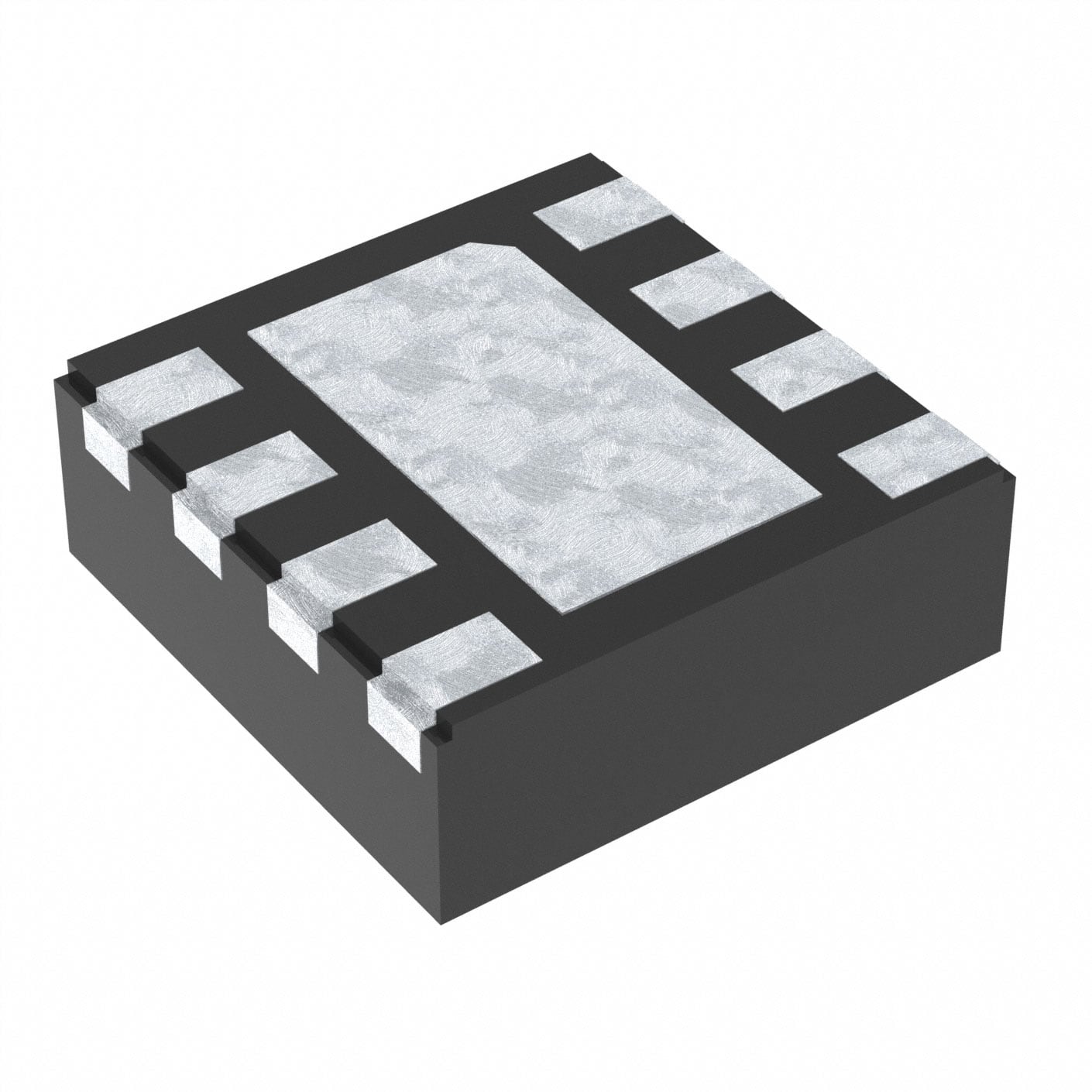

The device is available in a compact 8-WDFNW (2x2 mm) package, making it suitable for space-constrained designs. It supports surface mount, wettable flank mounting.
This regulator is Pb-Free and suitable for automotive applications requiring unique site and control change requirements, being AEC-Q100 qualified and PPAP capable.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The fixed output voltage is 0.9V.
The maximum output current is 500mA.
The operating input voltage range is 1.6V to 5.5V.
The operating junction temperature range is -40°C to 125°C.
It is available in an 8-WDFNW (2x2mm) surface mount package with wettable flank.
The typical quiescent current is 60µA.
Yes, thermal shutdown occurs at 175°C.
