NCV7726DQAR2G The ON Semiconductor NCV7726DQAR2G is a twelve-channel half-bridge driver designed for automotive and industrial motion control. It features independent controls, diagnostics, and protection features.
Mfr Part #:

NCV7726DQAR2G

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor NCV7726DQAR2G is a twelve-channel half-bridge driver designed for automotive and industrial motion control. It features independent controls, diagnostics, and protection features.
✓ Total Stock: 28,147 pcs
$ Price Range: $0.75

NCV7726DQAR2G Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
25,000 pcs
On Request
25000 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
3,147 pcs
On Request
3147 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NCV7726DQAR2G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Fault Protection
Features
Halogen Free
Interface
Load Type
Mounting Type
Operating Temperature
Output Configuration
Rds On (Typ)
SVHC Present
Supplier Device Package
Technology
Voltage
View Similar Products (0)

NCV7726DQAR2G Description

Short technical summary and product information.

The NCV7726DQAR2G from ON Semiconductor is a versatile twelve-channel half-bridge driver engineered for demanding automotive and industrial motion control applications. This device offers independent control and diagnostic capabilities, allowing operation in forward, reverse, brake, and high impedance states.



Key electrical specifications include a wide operating voltage range of 5.5V to 32V and a peak output current of 1.1A. The driver features low-side and high-side configurations with integrated freewheeling protection. It is controlled via a 16-bit SPI interface, supporting daisy-chain configurations and offering 5 MHz communication speed with frame error detection.



Protection features are integrated to enhance reliability, including overcurrent, overtemperature, undervoltage lockout (UVLO), and overvoltage lockout. The NCV7726DQAR2G also includes low-side underload detection. It operates within a junction temperature range of -40°C to 125°C.

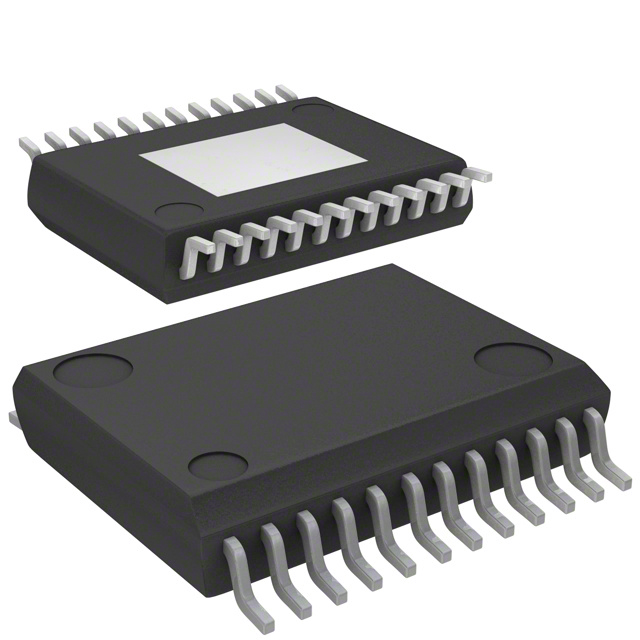

Packaged in a 24-pin SSOP-EP with an exposed pad, this surface-mount device is suitable for various DC motor management applications. It is AEC-Q100 qualified and RoHS compliant, making it a robust choice for automotive and industrial systems.

NCV7726DQAR2G Quick Information

Product Type: Half-Bridge Driver
Canonical Name: NCV7726A Half-Bridge Driver
Subcategory: Power Management ICs

NCV7726DQAR2G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free

NCV7726DQAR2G Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

NCV7726DQAR2G Features

  • Twelve channel half-bridge driver.
  • 1.1A peak output current capability.
  • Wide 5.5V to 32V operating voltage.
  • 16-bit SPI interface for control.
  • Integrated overcurrent and thermal protection.

NCV7726DQAR2G Applications

  • Automotive motion control systems.
  • Industrial motor management.
  • DC motor drive applications.
  • HV AC motor control.

NCV7726DQAR2G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the peak output current for the NCV7726DQAR2G?

The NCV7726DQAR2G has a peak output current of 1.1 A.

What is the operating voltage range for this half-bridge driver?

The operating voltage range is from 5.5 V to 32 V.

What type of interface does the NCV7726DQAR2G use for control?

It uses a 16-bit SPI interface for control.

What are the integrated fault protection features?

The fault protection includes Over Current, Over Temperature, Over Voltage, and UVLO.

What is the package type for the NCV7726DQAR2G?

It is supplied in a 24-SSOP-EP package with an exposed pad.

What is the operating temperature range?

The operating temperature range is -40°C to 125°C (TJ).

Is the NCV7726DQAR2G RoHS compliant?

Yes, the device is RoHS3 compliant.
