NCV7518MWATXG The NCV7518MWATXG from On Semiconductor is a six-channel low-side MOSFET pre-driver. It features SPI and parallel control inputs and operates within a 3V to 5.25V range.
Mfr Part #:

NCV7518MWATXG

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The NCV7518MWATXG from On Semiconductor is a six-channel low-side MOSFET pre-driver. It features SPI and parallel control inputs and operates within a 3V to 5.25V range.
✓ Total Stock: 200 pcs
$ Price Range: $2.25

NCV7518MWATXG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Rayichip ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NCV7518MWATXG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Applications
Automotive Grade
Function
Interface
Motor Type
Mounting Type
Operating Temperature
Output Configuration
Programmable Features
Supplier Device Package
Supplier Package
Tape & Reel
Technology
Voltage
View Similar Products (0)

NCV7518MWATXG Description

Short technical summary and product information.

The NCV7518MWATXG is a programmable six-channel low-side MOSFET pre-driver from On Semiconductor, part of the FLEXMOS automotive-grade product family. It is designed for driving logic-level MOSFETs and is controllable via a combination of serial SPI and parallel inputs. The device offers 3.3V/5V compatible inputs and its serial output driver can be powered from either 3.3V or 5V.



Key features include 16-bit SPI with parity and frame error detection, reset and enable inputs, and an open-drain fault flag. Each channel independently monitors its external MOSFET's drain voltage for fault conditions, with programmable shorted load fault detection thresholds and fault recovery modes (latch-off or automatic retry). Diagnostics are priority encoded and provide latched unique fault type data, including shorted load, short to GND, and open load with fast charge option.

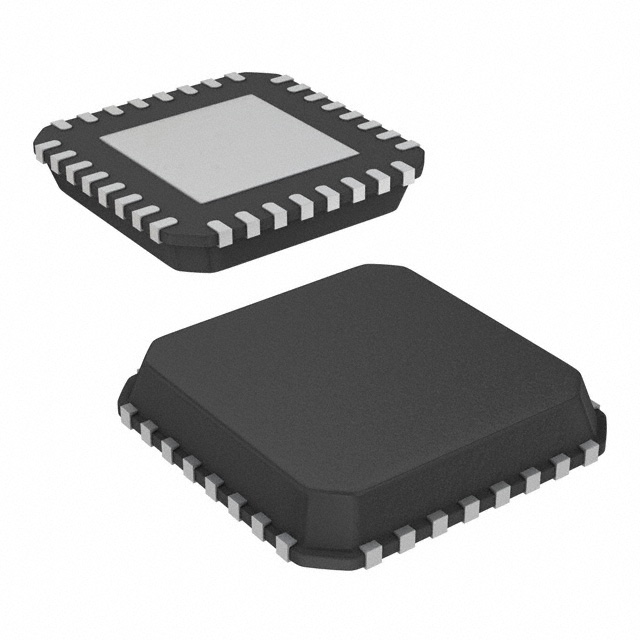

This device is housed in a 32-VFQFN exposed pad package suitable for surface mounting. It operates within a temperature range of -40°C to 125°C (TA) and is designed for automotive applications. The NCV7518MWATXG is Pb-Free and meets RoHS3 compliance standards.

NCV7518MWATXG Quick Information

Product Type: MOSFET Pre-driver
Canonical Name: NCV7518/NCV7518A Hex Low-side MOSFET Pre-driver
Subcategory: Power Distribution Switches, Load Drivers

NCV7518MWATXG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free

NCV7518MWATXG Estimated Pricing

Qty Low High
1+ $2.25 $2.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

NCV7518MWATXG Features

  • Six-channel low-side MOSFET pre-driver.
  • SPI and parallel control inputs.
  • Programmable fault detection and recovery.
  • Automotive grade, AEC-Q100 qualified.
  • 32-VFQFN exposed pad package.

NCV7518MWATXG Applications

  • Automotive brushed DC motor control
  • Hex low-side MOSFET pre-driver applications
  • SPI and parallel controlled motor drivers
  • Automotive grade motor commutation systems
  • Programmable fault detection for automotive loads

NCV7518MWATXG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the NCV7518MWATXG?

3V to 5.25V.

What is the operating temperature range?

-40°C to 125°C.

What package does the NCV7518MWATXG come in?

32-VFQFN exposed pad (32-QFN 5x5mm).

What interface options are available?

SPI and parallel interface.

Is the NCV7518MWATXG lead-free?

Yes, it is Pb-Free.

What motor type is this driver designed for?

Brushed DC motors.

What diagnostic features does the NCV7518MWATXG include?

Priority encoded, latched unique fault type data for shorted load, short to ground, and open load with fast charge option.
