NCV7344AMW3R2G The ON Semiconductor NCV7344AMW3R2G is a high-speed, low-power CAN transceiver designed for automotive and industrial networks. It supports CAN FD requirements and offers low current standby mode with wake-up capability.
Mfr Part #:

NCV7344AMW3R2G

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor NCV7344AMW3R2G is a high-speed, low-power CAN transceiver designed for automotive and industrial networks. It supports CAN FD requirements and offers low current standby mode with wake-up capability.
✓ Total Stock: 99,750 pcs
$ Price Range: $1.44

NCV7344AMW3R2G Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
99,000 pcs
On Request
99000 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
750 pcs
On Request
750 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NCV7344AMW3R2G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Rate
Duplex
Mounting Type
Number of Drivers
Operating Temperature
Protocol
Supplier Device Package
Tape & Reel
Type
Voltage
View Similar Products (0)

NCV7344AMW3R2G Description

Short technical summary and product information.

The NCV7344AMW3R2G from ON Semiconductor is a CAN transceiver that serves as the interface between a CAN protocol controller and the physical bus. It provides differential transmit and receive capabilities for CAN networks.



This transceiver is compatible with ISO 11898-2:2016 and offers specifications for loop delay symmetry up to 5 Mbps, making it suitable for CAN flexible data rate (CAN FD) requirements. It features a very low current standby mode with wake-up capability via the CAN bus, low electromagnetic emission (EME), and high electromagnetic immunity.



The NCV7344AMW3R2G is designed for robustness, with very high ESD protection on bus pins (>8 kV), thermal protection, and bus pins that are short circuit proof to supply voltage and ground. It is also protected against transients in an automotive environment.

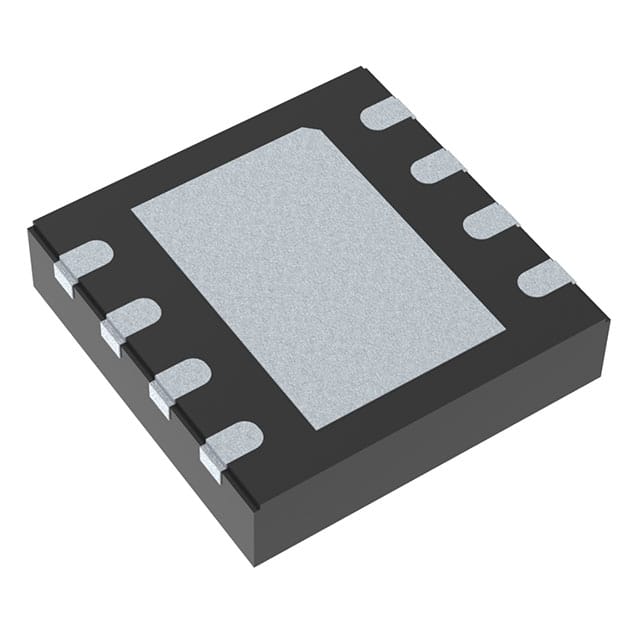

Packaged in an 8-VDFN Exposed Pad with a wettable flank for enhanced optical inspection, this surface mount device operates over a temperature range of -40°C to 150°C and requires a supply voltage of 4.75V to 5.25V.

NCV7344AMW3R2G Quick Information

Product Type: CAN Transceiver
Canonical Name: NCV7344AMW3R2G CAN Transceiver
Subcategory: CAN Transceiver

NCV7344AMW3R2G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-free Devices

NCV7344AMW3R2G Estimated Pricing

Qty Low High
1+ $1.44 $1.44

Estimated market price range - modelled values for guidance only, not live distributor offers.

NCV7344AMW3R2G Features

  • High-speed CAN FD transceiver.
  • Low power standby mode with wake-up.
  • Loop delay symmetry up to 5 Mbps.
  • Very high ESD robustness (>8 kV).
  • Surface mount, wettable flank package.

NCV7344AMW3R2G Applications

  • Suitable for high-speed CAN bus communication.
  • Used in automotive and industrial CAN networks.
  • Ideal for low-power CAN transceiver applications.
  • Applicable in environments requiring high ESD robustness.
  • Suitable for nodes with wake-up capability via CAN bus.

NCV7344AMW3R2G FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the NCV7344AMW3R2G?

The operating voltage is 4.75V to 5.25V.

What is the operating temperature range for this CAN transceiver?

The operating temperature range is -40°C to 150°C.

What package type is the NCV7344AMW3R2G supplied in?

It is supplied in an 8-VDFN Exposed Pad package.

What is the data rate supported by the NCV7344AMW3R2G?

The data rate is up to 5 Mbps.

Is the NCV7344AMW3R2G RoHS compliant?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this component?

The MSL is 1 Unlimited.
