NCV6356QMTWTXG The NCV6356QMTWTXG is a synchronous buck DC-DC converter from On Semiconductor with a wide input voltage range of 2.5V to 5.5V and programmable output from 0.6V to 1.4V.
Mfr Part #:

NCV6356QMTWTXG

Available from 3 distributors
Mfr Name: On Semiconductor
On Semiconductor
The NCV6356QMTWTXG is a synchronous buck DC-DC converter from On Semiconductor with a wide input voltage range of 2.5V to 5.5V and programmable output from 0.6V to 1.4V.
✓ Total Stock: 268,405 pcs
$ Price Range: $1.08

NCV6356QMTWTXG Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
265,265 pcs
On Request
265265 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,140 pcs
On Request
2140 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NCV6356QMTWTXG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Frequency
Function
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Output Voltage
Quiescent Current
Supplier Device Package
Supplier Package
Synchronous Rectifier
Topology
Voltage
View Similar Products (0)

NCV6356QMTWTXG Description

Short technical summary and product information.

The NCV6356QMTWTXG is a synchronous buck DC-DC converter from On Semiconductor. It operates from an input voltage range of 2.5V to 5.5V and provides a programmable output voltage from 0.6V to 1.4V in 6.25 mV steps. The device can deliver up to 6.8A output current, with thermal derating to 5.0A at 85°C and 3.0A at 105°C. The switching frequency is up to 2.4 MHz, and the quiescent current is typically 60 µA. The converter is housed in a 14-WFDFN exposed pad package with wettable flank for surface mount assembly. The operating temperature range is -40°C to 125°C. This device is suitable for point-of-load regulation in automotive and industrial applications.

NCV6356QMTWTXG Quick Information

Product Type: DC-DC Switching Regulator
Canonical Name: NCV6356QMTWTXG Buck DC-DC Switching Regulator
Subcategory: Buck Converter

NCV6356QMTWTXG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NCV6356QMTWTXG Estimated Pricing

Qty Low High
1+ $1.08 $1.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

NCV6356QMTWTXG Features

  • Wide input voltage range of 2.5V to 5.5V.
  • Programmable output voltage from 0.6V to 1.4V.
  • High efficiency synchronous buck topology.
  • Up to 6.8A output current capability.
  • Operating temperature range -40°C to 125°C.

NCV6356QMTWTXG Applications

  • Point-of-load regulation in embedded systems.
  • Powering low-voltage digital cores and processors.
  • Automotive infotainment and sensor modules.
  • Battery-powered portable devices.

NCV6356QMTWTXG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the NCV6356QMTWTXG?

The input voltage range is 2.5V to 5.5V.

What is the package type for the NCV6356QMTWTXG?

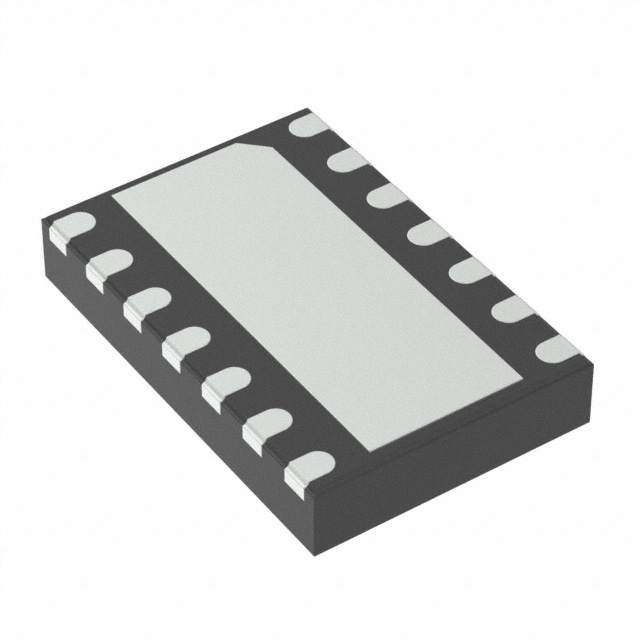

It is available in a 14-WFDFN exposed pad package with supplier package 14-WDFNW (4x3).

What is the operating temperature range?

The operating temperature range is -40°C to 125°C (junction temperature).

What is the output voltage range?

The output voltage is programmable from 0.6V to 1.4V in 6.25 mV steps.

What is the maximum output current?

The maximum output current is 6.8A, with derating to 5.0A at 85°C and 3.0A at 105°C.

What is the switching frequency?

The switching frequency is up to 2.4 MHz.

What is the quiescent current?

The quiescent current is typically 60 µA.
