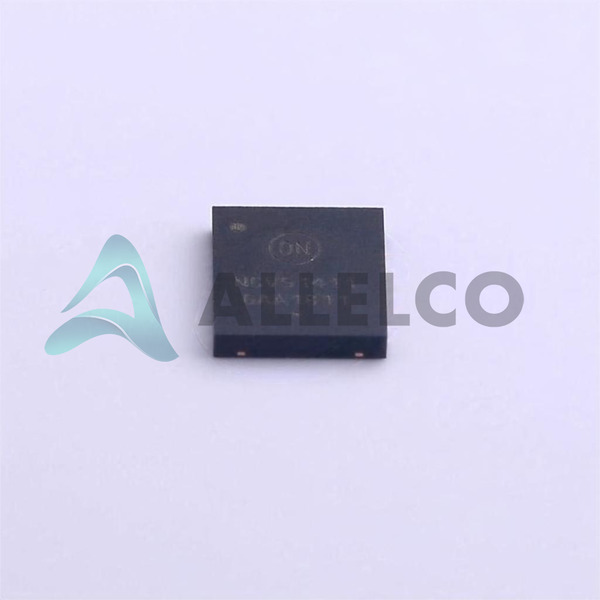

The NCV51513AAMNTWG from ON Semiconductor is a 130V half-bridge gate driver designed for high-efficiency power supplies and inverters, particularly in automotive applications like 48V DC/DC converters.
This device provides high drive current capabilities with 2.0 A source and 3.0 A sink current. It features a propagation delay of 50 ns (Ay version) and includes an 80 ns internal dead time option (xB version) to protect output MOSFETs against cross-conduction events. The driver is compatible with 3.3V and 5V logic inputs and includes an enable input for system flexibility and power consumption reduction.
Key electrical specifications include a high voltage range up to 130V, dV/dt immunity up to 50 V/ns, and matched propagation delays between channels up to 11 ns. It also features independent under-voltage lockout (UVLO) for both channels.
The NCV51513AAMNTWG is supplied in a 10-DFNW (3x3) surface-mount package with wettable flanks. It operates within a temperature range of -40°C to 125°C (TJ).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The high voltage range is up to 130 V, and the high side voltage is 150 V.
It is available in a 10-DFNW (3x3) package, also described as 10-VFDFN Exposed Pad, with surface mount and wettable flank mounting.
The operating temperature range is -40°C to 125°C (junction temperature).
Yes, it is a Pb-Free device as per the datasheet.
Up to 50 V/ns.
50 ns typical for the Ay version and 20 ns for the By version.
2.0 A source and 3.0 A sink.
