NCV47411PAAJR2G The On Semiconductor NCV47411PAAJR2G is a dual adjustable LDO regulator designed for automotive environments. It offers adjustable output voltage from 3.3V to 20V with 100mA per channel.
Mfr Part #:

NCV47411PAAJR2G

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor NCV47411PAAJR2G is a dual adjustable LDO regulator designed for automotive environments. It offers adjustable output voltage from 3.3V to 20V with 100mA per channel.
✓ Total Stock: 145,000 pcs
$ Price Range: $0.28

NCV47411PAAJR2G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
145,000 pcs
On Request
145000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NCV47411PAAJR2G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Control Features
Current
Industrial Grade
Military Grade
Mounting Type
Number of Regulators
Operating Temperature
Output Configuration
Output Current
Output Type
PSRR
Protection Features
SVHC Present
Supplier Device Package
Voltage
Voltage Dropout (Max)
View Similar Products (0)

NCV47411PAAJR2G Description

Short technical summary and product information.

The NCV47411PAAJR2G from On Semiconductor is a dual, adjustable low dropout (LDO) linear regulator. It is designed for harsh automotive environments, featuring a wide input voltage range and operating temperature range from -40°C to 150°C.



Each channel provides an adjustable output voltage from 3.3V to 20V with ±3% accuracy. The device supports an output current of 100mA per channel and features an adjustable current limit up to 150mA. Protection features include overcurrent, overtemperature, and reverse polarity protection.

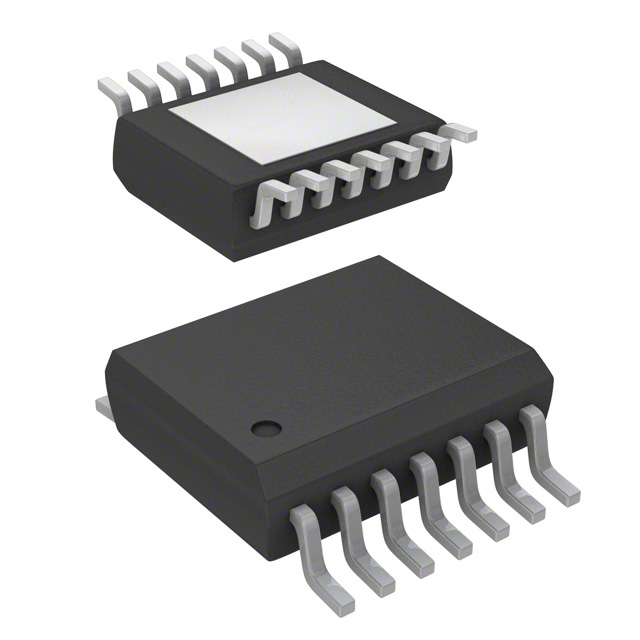

This regulator is available in a 14-TSSOP Exposed Pad package, suitable for surface mounting. It includes enable inputs compatible with 3.3V logic thresholds for output control. The integrated current sense feature aids in diagnosis and system protection.



Typical applications include audio and infotainment systems, instrument clusters, navigation, and satellite radio systems.

NCV47411PAAJR2G Quick Information

Product Type: LDO Regulator
Canonical Name: NCV47411 Dual Adjustable Current Limit LDO Regulator
Subcategory: Adjustable

NCV47411PAAJR2G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free

NCV47411PAAJR2G Estimated Pricing

Qty Low High
1+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

NCV47411PAAJR2G Features

  • Dual adjustable output voltage.
  • 100 mA output current per channel.
  • Adjustable current limit up to 150 mA.
  • Wide operating temperature range.
  • Integrated protection features.

NCV47411PAAJR2G Applications

  • Suitable for audio systems.
  • Used in infotainment systems.
  • Ideal for instrument clusters.
  • Applicable to navigation systems.
  • Designed for satellite radio.

NCV47411PAAJR2G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage range for the NCV47411PAAJR2G?

The output voltage is adjustable from 3.3 V to 20 V.

How many regulators are in the NCV47411PAAJR2G?

There are 2 regulators.

What is the maximum output current per channel?

The output current is 100 mA per channel.

What is the operating temperature range?

The operating temperature range is -40°C to 150°C.

What protection features are included?

Protection features include Over Current, Over Temperature, and Reverse Polarity.

What package type is the NCV47411PAAJR2G in?

It is in a 14-TSSOP Exposed Pad package.

Is the NCV47411PAAJR2G RoHS compliant?

The RoHS status is RoHS3 Compliant.
