NCV4254CPDAJR2G The NCV4254CPDAJR2G is an adjustable positive linear voltage regulator from On Semiconductor. It offers up to 70mA of output current and operates over a wide input voltage range.
Mfr Part #:

NCV4254CPDAJR2G

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The NCV4254CPDAJR2G is an adjustable positive linear voltage regulator from On Semiconductor. It offers up to 70mA of output current and operates over a wide input voltage range.
✓ Total Stock: 65,000 pcs
$ Price Range: $0.28

NCV4254CPDAJR2G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
65,000 pcs
On Request
65000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NCV4254CPDAJR2G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Control Features
Current
Halogen Free
Input Voltage
Mounting Type
Number of Regulators
Operating Temperature
Output Configuration
Output Type
PSRR
Protection Features
Supplier Device Package
Tape & Reel
Voltage
Voltage Dropout (Max)
View Similar Products (0)

NCV4254CPDAJR2G Description

Short technical summary and product information.

The NCV4254CPDAJR2G is a low dropout voltage tracking regulator from On Semiconductor, designed for adjustable buffered output voltages that closely track the reference input. It can deliver up to 70 mA of source capability and is suitable for automotive applications.



Key electrical specifications include a maximum input voltage of 40V and a maximum output voltage of 40V. The device features a low dropout voltage of typically 220 mV at 70 mA and a quiescent current of 80 µA. Protection features include current limitation and thermal shutdown.

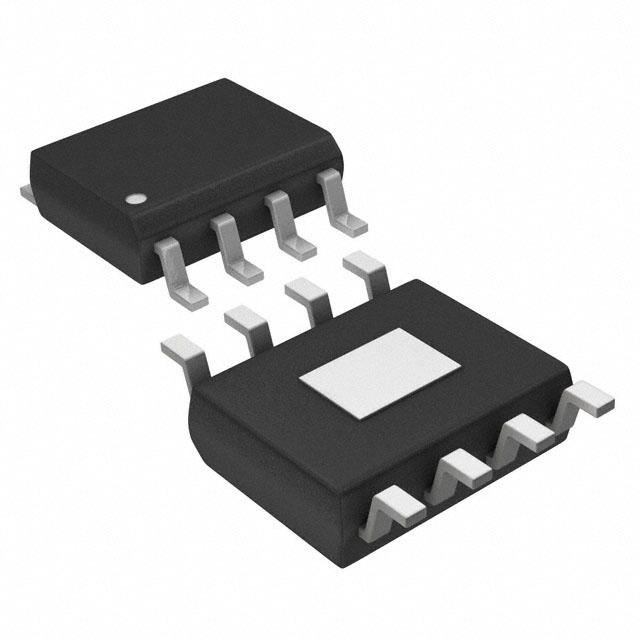

This regulator is available in an 8-SOIC-EP package, designed for surface mount applications. It operates within a wide temperature range of -40°C to 150°C (TJ). The NCV4254CPDAJR2G is Pb-free and Halogen-free, meeting RoHS compliance standards.

NCV4254CPDAJR2G Quick Information

Product Type: Low Dropout Tracking Regulator
Series: Automotive, AEC-Q100
Canonical Name: NCV4254C Low Dropout Voltage Tracking Regulator
Subcategory: Linear

NCV4254CPDAJR2G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NCV4254CPDAJR2G Estimated Pricing

Qty Low High
1+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

NCV4254CPDAJR2G Features

  • Adjustable positive linear voltage regulator.
  • Up to 70 mA source capability.
  • Low dropout voltage typical 220 mV.
  • Wide input voltage operating range.
  • Automotive AEC-Q100 Grade 1 qualified.

NCV4254CPDAJR2G Applications

  • Automotive applications with remote sensors.
  • Isolating output of other regulators.
  • Module upgrades for increased current.
  • Off-module loads like sensor power supplies.

NCV4254CPDAJR2G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage range of the NCV4254CPDAJR2G?

The output voltage is adjustable from 1V to 40V.

What package is the NCV4254CPDAJR2G available in?

It is available in an 8-SOIC (0.154", 3.90mm Width) Exposed Pad package.

What is the operating temperature range?

-40°C to 150°C (junction).

What is the dropout voltage?

The maximum dropout voltage is 0.4V at 70mA output current.

Does it have reverse input voltage protection?

Yes, it features reverse input voltage and reverse bias voltage protection.

What is the output current capability?

Up to 70mA.

What control features does it have?

Enable control.
