NCV330MUTBG The On Semiconductor NCV330MUTBG is a soft-start controlled N-channel load switch designed for mobile applications. It operates from 1.8V to 5.5V and can handle up to 3A of current.
Mfr Part #:

NCV330MUTBG

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor NCV330MUTBG is a soft-start controlled N-channel load switch designed for mobile applications. It operates from 1.8V to 5.5V and can handle up to 3A of current.
✓ Total Stock: 6,464 pcs
$ Price Range: $0.32

NCV330MUTBG Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
4,564 pcs
On Request
4564 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,900 pcs
On Request
1900 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NCV330MUTBG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Features
Interface
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Ratio
Rds On (Typ)
Supplier Device Package
Switch Type
Voltage
View Similar Products (0)

NCV330MUTBG Description

Short technical summary and product information.

The NCV330MUTBG from On Semiconductor is a low Rds(on) N-channel MOSFET load switch featuring a 2 ms soft-start sequence, making it suitable for mobile applications such as phones and tablets. It operates within a 1.8 V to 5.5 V range and supports DC current up to 3 A, with a peak current capability of 5 A.

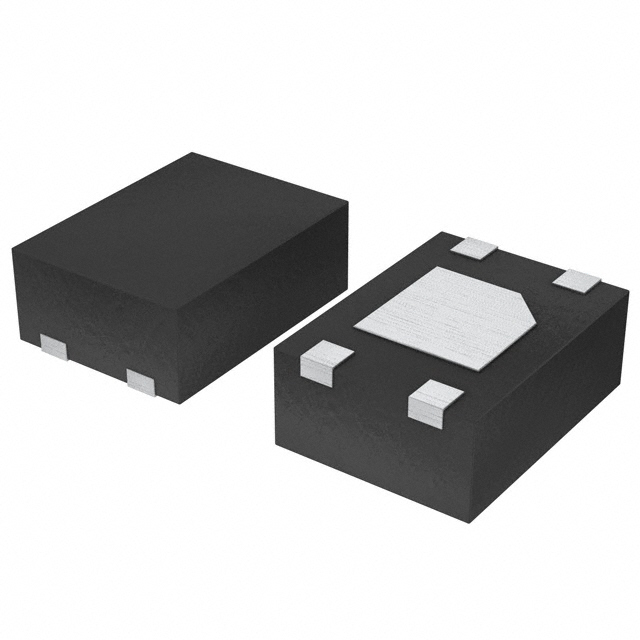

This device offers reverse voltage protection and active high enable functionality. It also includes compliance to IEC61000-4-2 Level 4 for ESD protection, with ratings of 8.0 kV (Contact) and 15 kV (Air). The NCV330MUTBG is available in a compact 1.2 x 1.6 mm 4-UDFN package with an exposed pad for enhanced thermal dissipation.



Typical applications include system supplying, battery charging, USB port control, and signal routing. The NCV prefix indicates suitability for automotive and other applications requiring unique site and control change requirements, with AEC-Q100 qualification and PPAP capability. It is also a Pb-Free device.

NCV330MUTBG Quick Information

Product Type: Load Switch
Canonical Name: NCV330MUTBG Soft-Start Controlled Load Switch
Subcategory: Load Driver

NCV330MUTBG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free

NCV330MUTBG Estimated Pricing

Qty Low High
1+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

NCV330MUTBG Features

  • Low Rds(on) N-channel MOSFET.
  • Built-in soft-start sequence.
  • Handles up to 3A DC current.
  • ESD protection to IEC61000-4-2 Level 4.
  • Compact 4-UDFN package.

NCV330MUTBG Applications

  • Ideal for mobile phone power.
  • Suitable for battery charging systems.
  • Used in tablet power management.
  • Applicable for USB power control.
  • Supports GPS device power.

NCV330MUTBG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the NCV330MUTBG?

The operating voltage range is 1.8 V to 5.5 V.

What is the maximum continuous current the NCV330MUTBG can handle?

The NCV330MUTBG can handle a DC current of up to 3 A.

What is the typical Rds On for the NCV330MUTBG?

The typical Rds On is 26 mOhm.

What is the package type for the NCV330MUTBG?

The package type is 4-UDFN (1.2x1.6) with an exposed pad.

What is the operating temperature range of the NCV330MUTBG?

The operating temperature range is -40°C to 85°C.

Does the NCV330MUTBG have ESD protection?

Yes, it has ESD protection compliant to IEC61000-4-2 Level 4, with 8.0 kV contact and 15 kV air discharge ratings.

What is the soft-start time for the NCV330MUTBG?

The built-in soft-start time is 2 ms.
