Mfr Part #:

NCV1397BDR2G

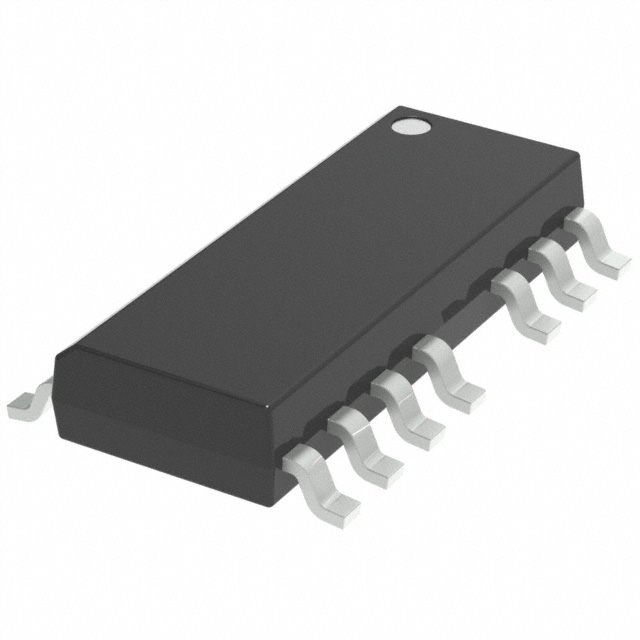

Name: NCV1397BDR2G
Brand: On Semiconductor
SKU: NCV1397BDR2G

Mfr Name: On Semiconductor

Description:

IC OFFLINE SW HALF-BRDG 16SOIC

Stock on Request

NCV1397BDR2G Description

Short technical summary and product information.

IC OFFLINE SW HALF-BRDG 16SOIC

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

NCP1397ADR2G

On Semiconductor

IC OFFLINE SW HALF-BRDG 16SOIC

NCP1397BDR2G

On Semiconductor

IC OFFLINE SW HALF-BRDG 16SOIC

NCV1397ADR2G

On Semiconductor

IC OFFLINE SW HALF-BRDG 16SOIC

Category	AC DC Converters, Offline Switches
Manufacturer Name	On Semiconductor
Control Features	Frequency Control
Duty Cycle	50%
Fault Protection	Current Limiting, Over Temperature, Over Voltage, Short Circuit
Frequency	60kHz ~ 500kHz
Internal Switch(s)	No
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 125°C (TJ)
Output Isolation	Isolated
Supplier Device Package	16-SOIC
Topology	Half-Bridge
Voltage	9.5V ~ 20V
