| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
57 pcs
|
57 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

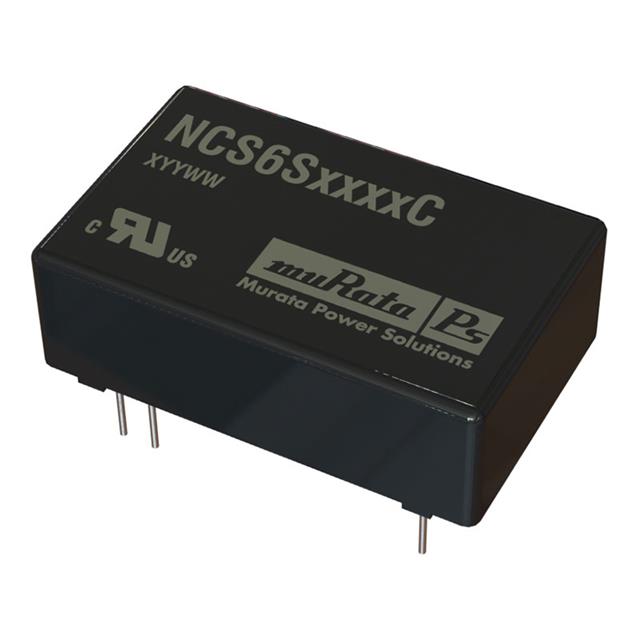

The Murata NCS6S1203C is an isolated DC DC converter module designed for ITE (Commercial) applications. It features a fixed 3.3V output voltage and can supply up to 1.52A of current, providing a total output power of 5W.
This converter operates within a wide input voltage range of 9V to 36V, with a nominal input voltage of 12V. Key electrical specifications include 78% efficiency, 0.2% line regulation, and 0.6% load regulation. It also offers 1.5kV isolation voltage and features protection mechanisms such as OTP, SCP, and UVLO.
The NCS6S1203C is housed in a 24-DIP Module package with 8 leads and is designed for Through Hole mounting. It has a compact size of 32.0mm x 20.0mm x 10.0mm and operates reliably within a temperature range of -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage is 9V to 36V.
The output voltage is 3.3V.
The maximum output current is 1.52A.
The efficiency is 78%.
The operating temperature range is from -40°C to 85°C.
It uses a 24-DIP module with 8 leads.
RoHS3 compliant.
