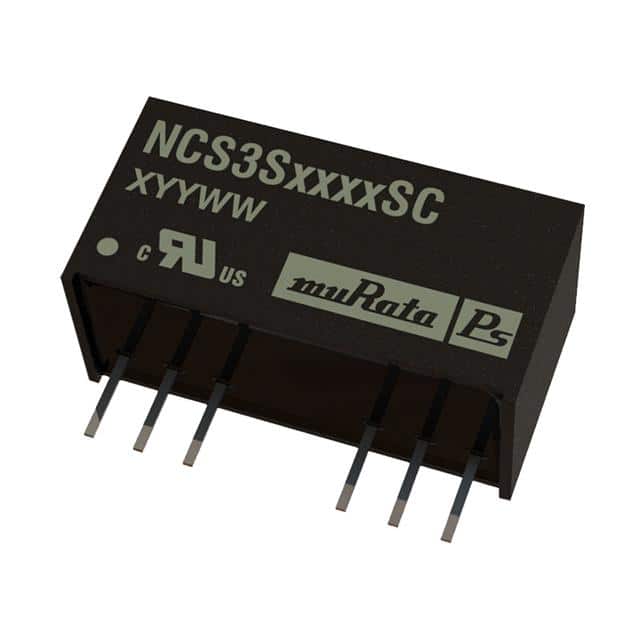

NCS3S1203SC Murata Power Solutions NCS3S1203SC is an isolated DC-DC converter with 9-36V input range, 3.3V 700mA output, 3W power, and 1500VDC isolation in a through-hole DIP module.
Mfr Part #:

NCS3S1203SC

Available from 1 distributors
Mfr Name: Murata
Murata
Murata Power Solutions NCS3S1203SC is an isolated DC-DC converter with 9-36V input range, 3.3V 700mA output, 3W power, and 1500VDC isolation in a through-hole DIP module.
✓ Total Stock: 3 pcs
$ Price Range: $9.55 - $11.82

NCS3S1203SC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NCS3S1203SC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Storage Temperature
Tape & Reel
Termination Style
Type
Voltage
Width
View Similar Products (0)

NCS3S1203SC Description

Short technical summary and product information.

The Murata Power Solutions NCS3S1203SC is a 3W isolated DC-DC converter from the NCS3 series. It accepts a wide 4:1 input voltage range of 9V to 36V (nominal 12V) and provides a regulated 3.3V output at up to 700mA. Typical efficiency is 74% at 12V input and 77% at 24V input. The converter offers 1500VDC input-to-output isolation, making it suitable for industrial and commercial applications requiring galvanic isolation.



Key electrical characteristics include line regulation of ±0.5%, load regulation of ±1%, and typical ripple and noise of 32mVp-p (55mVp-p maximum). The device operates over a -40°C to +85°C temperature range and is packaged in an 8-DIP through-hole module measuring 22.0mm x 9.5mm x 11.3mm. It features short circuit protection (SCP) and is designed for ITE (commercial) applications.

NCS3S1203SC Quick Information

Product Type: DC-DC Converter
Series: NCS3S
Canonical Name: Murata Power Solutions NCS3S1203SC Isolated DC-DC Converter, 3.3V Output, 3W
Subcategory: Board Mount Power Supplies

NCS3S1203SC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NCS3S1203SC Estimated Pricing

Qty Low High
1+ $11.82 $11.82
5+ $10.93 $10.93
10+ $10.27 $10.27
23+ $10.24 $10.24
46+ $9.83 $9.83
115+ $9.74 $9.74
253+ $9.63 $9.63
506+ $9.55 $9.55

Estimated market price range - modelled values for guidance only, not live distributor offers.

NCS3S1203SC Features

  • Wide 4:1 input voltage range 9-36V.
  • Regulated 3.3V output at 700mA.
  • 1500VDC input-to-output isolation.
  • Through-hole 8-DIP module package.
  • Short circuit protection included.

NCS3S1203SC Applications

  • Industrial control system power supplies.
  • Telecommunications equipment power rails.
  • Test and measurement instrumentation.
  • Distributed power architectures.

NCS3S1203SC FAQs

6 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the NCS3S1203SC?

The input voltage range is 9V to 36V with a nominal of 12V.

What output voltage and current does this converter provide?

It provides a regulated 3.3V output at up to 700mA (3W).

What is the isolation voltage rating?

The isolation voltage is 1500VDC, flash tested for 1 minute.

What is the operating temperature range?

The operating temperature range is -40°C to +85°C.

What package and mounting type does the NCS3S1203SC use?

It is available in an 8-DIP through-hole module.

Is the NCS3S1203SC RoHS compliant?

RoHS3 compliance is indicated but unverified.
