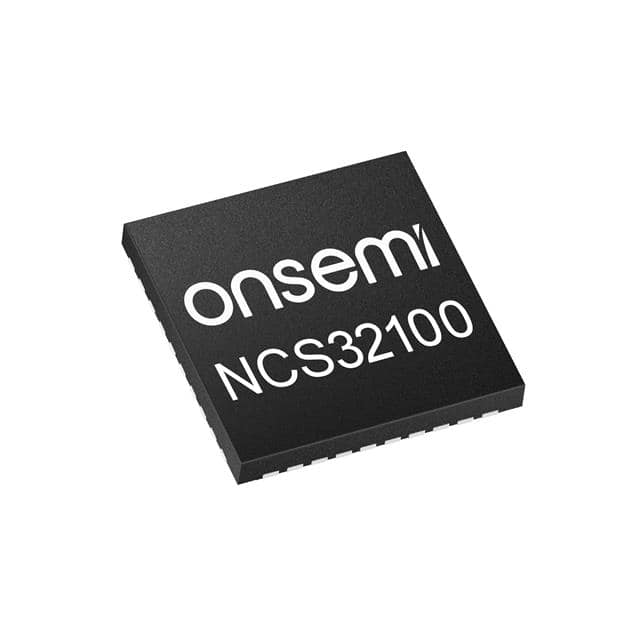

The NCS32100XMNTXG from On Semiconductor is a versatile inductive position sensor controller designed for high-resolution angular sensing applications. It provides absolute position output with a serial digital interface, supporting speeds up to 6000 rpm at full accuracy and 60,000 rpm at reduced accuracy.
This device operates within a supply voltage range of 2.75V to 5.5V and features interface level shifting from 2.7V to 5.5V. It offers flexible configuration for various inductive sensor patterns and includes features like temperature and backup battery measurements. The NCS32100XMNTXG is housed in a 40-QFN (5x5) package, suitable for surface mounting.
Key specifications include a single-turn resolution of 20-bit and multi-turn resolution of 24-bit. It supports RS-485 driver connection up to 2.5 Mbps. Typical applications include industrial automation, robotics, motor control, positioning, and servo applications where contaminant insensitivity and mechanical simplification are advantageous.
The device is Pb-free and RoHS compliant, operating within a temperature range of -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.65 | $2.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 2.75 V to 5.5 V.
The operating temperature range is -40°C to 85°C.
It is supplied in a 40-QFN (5x5) package.
Yes, the device is RoHS3 Compliant.
The maximum speed at full accuracy is 6000 rpm.
It offers a single-turn resolution of 20-bit and a multi-turn resolution of 24-bit.
