NCS2220AMUT1G The ON Semiconductor NCS2220AMUT1G is a dual general-purpose analog comparator IC. It features a 500ns response time and operates over a wide supply voltage range.
Mfr Part #:

NCS2220AMUT1G

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor NCS2220AMUT1G is a dual general-purpose analog comparator IC. It features a 500ns response time and operates over a wide supply voltage range.
✓ Total Stock: 5,597 pcs
$ Price Range: $0.36

NCS2220AMUT1G Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request 14+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
2,597 pcs
On Request
2597 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NCS2220AMUT1G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
CMRR, PSRR (Typ)
Current
Hysteresis
Lead Spacing
Mounting Type
Number of Elements
Operating Temperature
Output Type
Propagation Delay (Max)
Supplier Device Package
Type
Voltage
View Similar Products (0)

NCS2220AMUT1G Description

Short technical summary and product information.

The NCS2220AMUT1G from ON Semiconductor is a general-purpose analog comparator designed for various electronic applications. This IC features a single channel with complementary, rail-to-rail output.



Key electrical specifications include an input bias current of 1 pA, an input offset voltage of 10 mV, and an operating supply current of 17 uA. The device supports a wide supply voltage range from 0.85 V to 6 V, with a typical output current of 60 mA per channel. Its response time is rated at 500 ns, making it suitable for moderately fast switching applications.

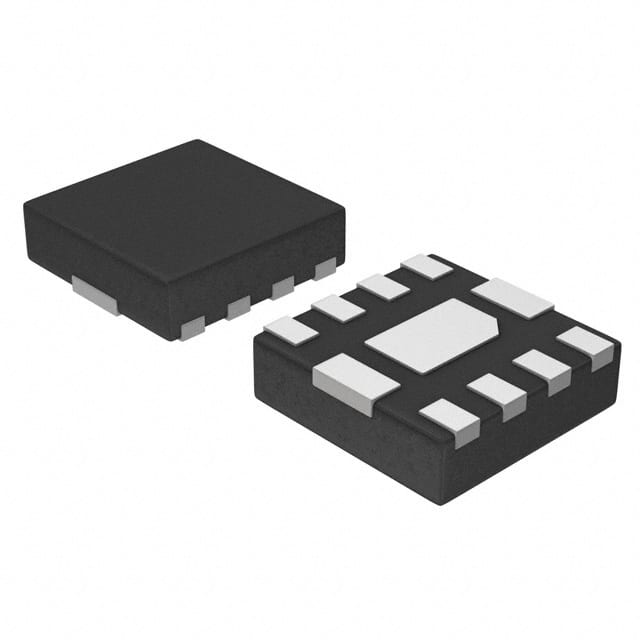

The comparator operates within a temperature range of -40°C to +105°C. It is housed in a compact 8-UDFN (1.6x1.6 mm) package with an exposed pad, designed for surface mounting. The packaging is supplied on a reel, with a standard quantity of 3000 units.



Environmental compliance includes RoHS3 compliance and an MSL 1 rating, indicating unlimited shelf life under standard conditions. The REACH status is listed as unaffected.

NCS2220AMUT1G Quick Information

Product Type: Comparator IC
Canonical Name: NCS2220AMUT1G Dual General Purpose Comparator
Subcategory: Amplifier ICs

NCS2220AMUT1G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NCS2220AMUT1G Estimated Pricing

Qty Low High
1+ $0.36 $0.36

Estimated market price range - modelled values for guidance only, not live distributor offers.

NCS2220AMUT1G Features

  • Single channel general purpose comparator.
  • Complementary, rail-to-rail output.
  • Fast 500ns response time.
  • Wide 0.85V to 6V supply range.
  • Low 17uA operating current.

NCS2220AMUT1G Applications

  • Ideal for voltage threshold detection.
  • Suitable for signal conditioning circuits.
  • Used in battery-powered devices.
  • Applicable in low-power systems.

NCS2220AMUT1G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating supply voltage range for the NCS2220AMUT1G?

The NCS2220AMUT1G operates from 0.85 V to 6 V.

What is the response time of the NCS2220AMUT1G comparator?

The response time of the NCS2220AMUT1G is 500 ns.

What type of output does the NCS2220AMUT1G offer?

The NCS2220AMUT1G offers complementary, rail-to-rail output.

What is the operating temperature range for this comparator?

The NCS2220AMUT1G operates from -40°C to +105°C.

What package is the NCS2220AMUT1G available in?

The NCS2220AMUT1G is available in an 8-UDFN Exposed Pad package.

Is the NCS2220AMUT1G RoHS compliant?

Yes, the NCS2220AMUT1G is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the NCS2220AMUT1G?

The Moisture Sensitivity Level (MSL) for the NCS2220AMUT1G is 1 Unlimited.
