| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40,157 pcs
|
40157 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CMRR, PSRR (Typ) | |
| Current | |
| Hysteresis | |
| Lead Spacing | |
| Mounting Type | |
| Number of Elements | |
| Operating Temperature | |
| Operating Voltage | |
| Output Type | |
| Propagation Delay | |
| Propagation Delay (Max) | |
| Supplier Device Package | |
| Supplier Package | |
| Supply Current | |
| Tape & Reel | |
| Type | |
| Voltage |
The NCS2200SQLT1G from On Semiconductor is a general-purpose comparator designed for low-power applications. It operates over a wide voltage range from 0.85 V to 6.0 V, making it suitable for various system designs, including those powered by single-cell batteries.
Key electrical characteristics include a low supply current of 10 µA and a typical propagation delay of 1.0 µs. The comparator features internal hysteresis of 20 mV for clean output switching and provides complementary, rail-to-rail output performance. It has a high CMRR of 70dB and PSRR of 80dB.

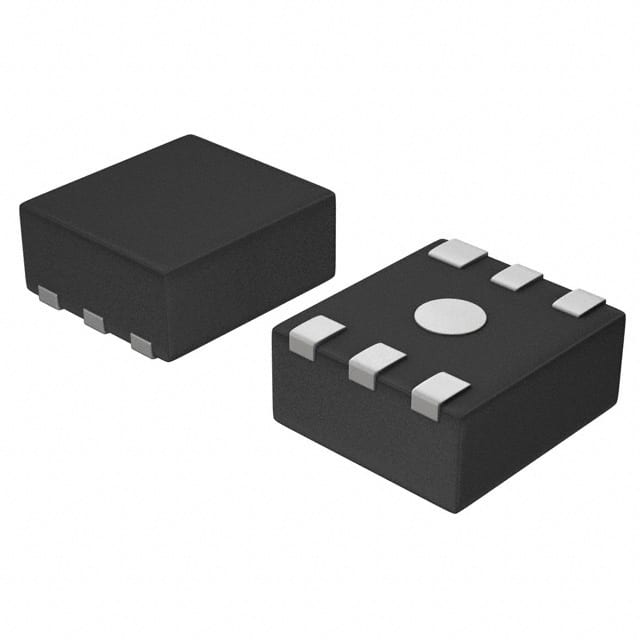

This device is housed in a 6-DFN (2x2.2) surface-mount package, offering a compact footprint for space-constrained applications. The NCS2200SQLT1G is RoHS3 compliant and has an MSL rating of 1.
Typical applications include battery-powered devices, cellphones, smartphones, and alarm systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.36 | $0.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The NCS2200SQLT1G comparator operates from 0.85 V to 6.0 V.
The typical supply current consumption for the NCS2200SQLT1G is 10 µA.
The propagation delay for the NCS2200SQLT1G comparator is 1.0 µs.
The NCS2200SQLT1G operates within a temperature range of -40°C to 105°C.
The NCS2200SQLT1G comparator is supplied in a 6-DFN (2x2.2) package.
The NCS2200SQLT1G is RoHS3 compliant.
