| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Halogen Free | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Channels | |
| Output Current | |
| SVHC Present | |
| Slew Rate | |
| Storage Temperature | |
| Tape & Reel |
The On Semiconductor NCS20094DR2G is a versatile operational amplifier designed for a wide range of electronic applications. It offers a gain bandwidth product of 350 kHz, making it suitable for signal conditioning and amplification tasks.
This operational amplifier operates with a minimum supply voltage of 1.8V and a maximum of 5.5V, providing flexibility in power design. Key electrical characteristics include a typical input bias current of 1500 pA, a typical input offset voltage of 4 mV, and a typical slew rate of 0.15 V/µs. It also provides a typical output current of 100 mA and a typical input offset current of 1100 pA.

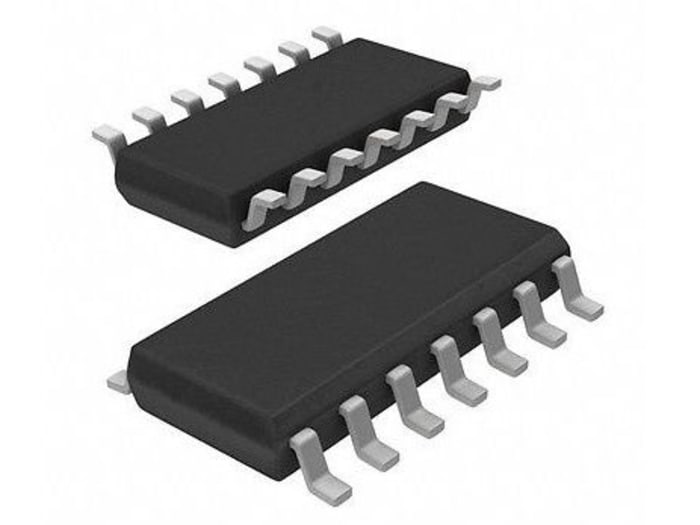

The NCS20094DR2G is housed in a 14-pin SOIC package, designed for surface mounting. Its operating temperature range spans from -40°C to 125°C, ensuring reliable performance in various environmental conditions. This component is part of the NCS20094 series.
With its robust specifications and surface-mount packaging, the NCS20094DR2G is a suitable choice for engineers designing compact and efficient electronic circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The gain bandwidth product is 350 kHz.
The supply voltage range is from 1.8V to 5.5V.
The typical input bias current is 1500 pA.
The typical input offset voltage is 4 mV.
The operating temperature range is -40°C to 125°C.
It is available in a surface-mount SOIC package.
