| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
58,280 pcs
|
58280 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20,200 pcs
|
20200 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Current | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| PSRR | |
| Protection Features | |
| Quiescent Current | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage | |
| Voltage Dropout (Max) |
The ON Semiconductor NCP781BMN050TAG is a high-voltage tolerant linear regulator designed for demanding applications. It offers a fixed 5V output voltage and can supply up to 100mA of current.
Key electrical specifications include a wide input voltage range from 6V to 150V, ensuring flexibility in power supply design. The regulator features ±2.5% accuracy at room temperature and a very low quiescent current of typically 25 µA, making it suitable for power-sensitive systems. Protection features such as thermal shutdown and current limit are integrated to enhance reliability.

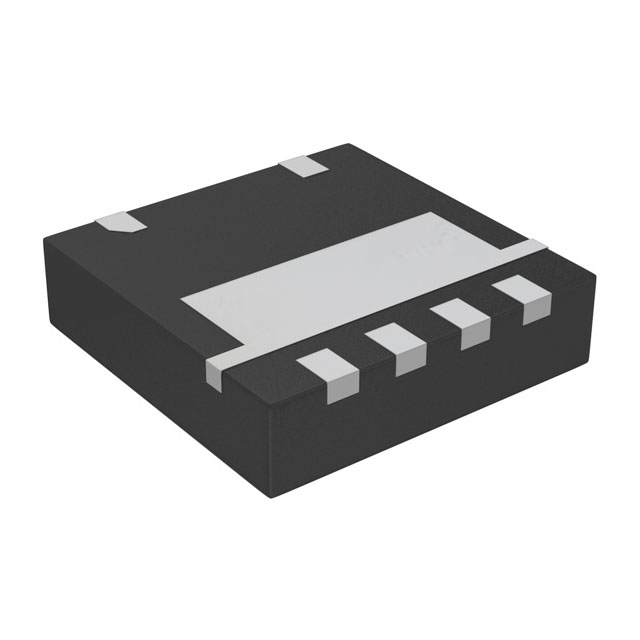

This device is available in a thermally enhanced 6-DFN (3.3x3.3) package with an exposed pad for improved heat dissipation. The surface mountable design is ideal for space-constrained applications. It is stable with small 0.1 µF ceramic output capacitors, further aiding in compact PCB layouts.
Typical applications include telecom and industrial systems, bias power supplies, and LED lighting. The NCP781BMN050TAG is designed for harsh environments and is a Pb-free device.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 6 V to 150 V.
The output current is 100 mA.
The output voltage accuracy is ±2.5% at room temperature.
The typical quiescent current is 25 µA.
The maximum dropout voltage is 9.5 V at 100 mA.
The operating junction temperature range is -40°C to 125°C.
It is available in a 6-VDFN exposed pad package (6-DFN 3.3x3.3) for surface mount.
