NCP752AMX33TCG The ON Semiconductor NCP752AMX33TCG is a 3.3V LDO voltage regulator designed for noise-sensitive RF applications. It offers 200mA output current with ultra-low quiescent current and low noise performance.
Mfr Part #:

NCP752AMX33TCG

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor NCP752AMX33TCG is a 3.3V LDO voltage regulator designed for noise-sensitive RF applications. It offers 200mA output current with ultra-low quiescent current and low noise performance.
✓ Total Stock: 97,526 pcs
$ Price Range: $0.28

NCP752AMX33TCG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
97,526 pcs
On Request
97526 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NCP752AMX33TCG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accuracy
Control Features
Current
Mounting Type
Noise
Number of Regulators
Operating Temperature
Output Configuration
Output Type
PSRR
Protection Features
Quiescent Current
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

NCP752AMX33TCG Description

Short technical summary and product information.

The ON Semiconductor NCP752AMX33TCG is a 200 mA Low Dropout (LDO) linear voltage regulator. It is engineered for applications requiring a clean and stable power supply, such as RF circuits, satellite radios, and infotainment equipment. The device features an ultra-low quiescent current of typically 12 µA, making it suitable for battery-powered portable devices.



Key electrical specifications include an operating input voltage range of 2.0 V to 5.5 V and a fixed output voltage of 3.3 V. It provides ±2% accuracy over load, line, and temperature variations. The regulator boasts ultra-low noise (11.5 µVRMS from 100 Hz to 100 kHz) and high Power Supply Rejection Ratio (PSRR) of 68 dB at 1 kHz, eliminating the need for an additional noise bypass capacitor.



Protection features include over current, over temperature, and under voltage lockout (UVLO). The NCP752AMX33TCG also incorporates an internal soft-start to limit inrush current and active output discharge for fast turn-off. It is stable with a 1 µF ceramic output capacitor.

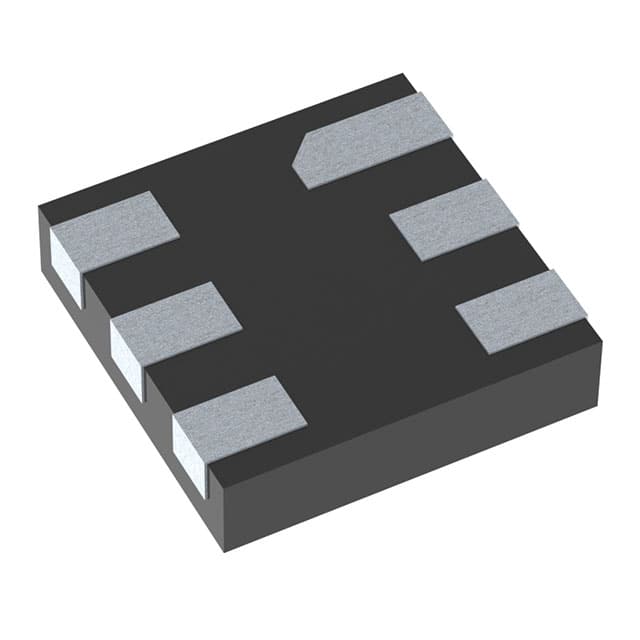

The device is available in a compact 6-XDFN (1.5x1.5 mm) surface-mount package. Its operating temperature range is -40°C to 125°C.

NCP752AMX33TCG Quick Information

Product Type: LDO Voltage Regulator
Series: NCP752
Canonical Name: On Semiconductor NCP752AMX33TCG LDO Voltage Regulator
Subcategory: LDO Voltage Regulator

NCP752AMX33TCG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NCP752AMX33TCG Estimated Pricing

Qty Low High
1+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

NCP752AMX33TCG Features

  • Ultra-low quiescent current of 12 µA.
  • Low noise performance for sensitive applications.
  • High PSRR of 68 dB at 1 kHz.
  • Integrated over current and thermal protection.
  • Compact 6-XDFN surface-mount package.

NCP752AMX33TCG Applications

  • Suitable for RF power amplifier supplies.
  • Ideal for battery-powered portable devices.
  • Used in wireless handsets and GPS.
  • Provides clean power for precision instrumentation.

NCP752AMX33TCG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the NCP752AMX33TCG?

The NCP752AMX33TCG provides a fixed output voltage of 3.3 V.

What is the maximum output current for this LDO regulator?

The NCP752AMX33TCG can supply a maximum output current of 200 mA.

What is the operating input voltage range?

The operating input voltage range for the NCP752AMX33TCG is from 2.0 V to 5.5 V.

What is the quiescent current of the NCP752AMX33TCG?

The typical quiescent current for the NCP752AMX33TCG is 12 µA.

How much noise does the NCP752AMX33TCG generate?

The NCP752AMX33TCG generates ultra-low noise of 11.5 µVRMS from 100 Hz to 100 kHz.

What is the dropout voltage at 200 mA?

The typical dropout voltage at 200 mA is 130 mV.

What package type is the NCP752AMX33TCG supplied in?

The NCP752AMX33TCG is supplied in a 6-XDFN (1.5x1.5 mm) package.
