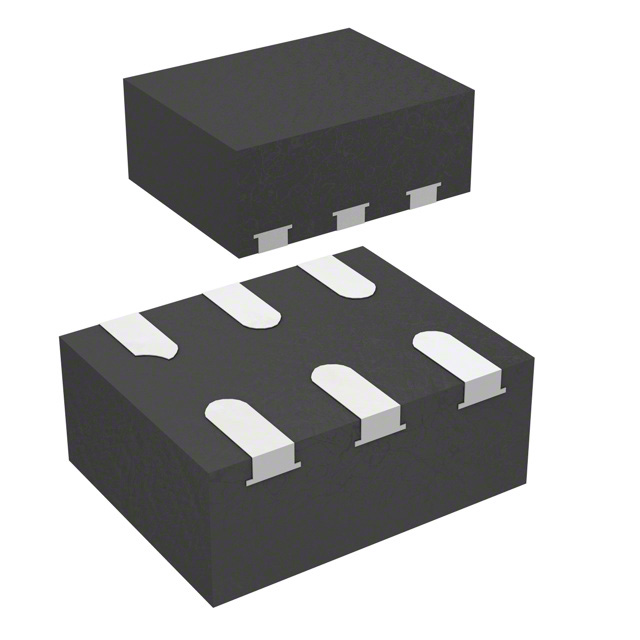

Mfr Part #:

NCP700BMT18TBG

The ON Semiconductor NCP700BMT18TBG is a 200mA LDO linear voltage regulator with an ultra-low noise and high PSRR design. It provides a stable 1.8V output voltage.

✓ Total Stock: 298,989 pcs

$ Price Range: $23.40

NCP700BMT18TBG Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Flip Electronics ✓ Non-Authorised Inventory information	298,989 pcs On Request	298989 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

NCP700BMT18TBG Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Voltage Regulators - Linear
Manufacturer Name	On Semiconductor
Mounting Type	Surface Mount
Output Current	200 mA
Output Voltage	1.8 V
PSRR	82 dB @ 1 kHz
Storage Temperature	°C ~ °C
Tape & Reel	No

View Similar Products (0)

NCP700BMT18TBG Description

Short technical summary and product information.

The ON Semiconductor NCP700BMT18TBG is a 200mA LDO (Low Dropout) linear voltage regulator designed for noise-sensitive RF applications. It offers an ultra-low noise output of 10 µVrms and a high Power Supply Rejection Ratio (PSRR) of 82 dB at 1 kHz, making it suitable for applications like cellular telephones and precision instrumentation.

This regulator features a fixed 1.8V output voltage and is stable with small ceramic output capacitors as low as 1 µF. It operates with an input voltage range from -0.3V to 6V and includes features such as current limit protection and thermal shutdown protection. The device is available in compact WDFN6 (1.5 mm x 1.5 mm) and TSOP-5 packages, ideal for space-constrained applications.

Designed with an advanced BiCMOS process, the NCP700B balances low noise and superior dynamic performance with very low ground current consumption. It also includes an active discharge circuit and a low disable mode current. The device is Pb-Free, indicating compliance with environmental standards.

NCP700BMT18TBG Quick Information

Product Type: Voltage Regulator - Linear

Canonical Name: NCP700B LDO Regulator

Subcategory: Linear Voltage Regulators

NCP700BMT18TBG Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Pb−Free Devices

NCP700BMT18TBG Estimated Pricing

Qty	Low	High
1+	$23.40	$23.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

NCP700BMT18TBG Features

Ultra low noise 10 µVrms output.
High PSRR of 82 dB at 1 kHz.
Stable with small ceramic capacitors.
Compact WDFN6 and TSOP-5 packages.
Pb-Free device for environmental compliance.

NCP700BMT18TBG Applications

Ideal for noise-sensitive RF applications.
Suitable for cellular telephones.
Used in precision instrumentation.
Powers battery-supplied devices.
Applications in smartphones and PDAs.

NCP700BMT18TBG FAQs

6 frequently asked questions generated from this part’s specifications.

What is the output voltage of the NCP700BMT18TBG?

The NCP700BMT18TBG has a nominal output voltage of 1.8 V.

What is the maximum output current for this LDO regulator?

The LDO regulator can provide a maximum output current of 200 mA.

How much noise does the NCP700BMT18TBG produce?

The regulator has an ultra-low noise output, typically 10 µVrms.

What is the PSRR of the NCP700BMT18TBG?

The device offers a very high PSRR, typically 82 dB at 1 kHz.

What package options are available for the NCP700B series?

The NCP700B series is available in WDFN6 and TSOP-5 packages.

Is the NCP700BMT18TBG RoHS compliant?

Yes, the device is RoHS3 Compliant.
