The NCP6360FCCT2G from On Semiconductor is a mini synchronous step-down DC-to-DC converter designed for RF power amplifiers in 3G/4G wireless systems. It is optimized for single-cell Lithium-Ion battery applications, capable of delivering up to 800 mA.
The device features an adjustable output voltage ranging from 0.6 V to 3.4 V, controlled via an analog VCON pin. This allows for dynamic optimization of RF Power Amplifier efficiency during communication, potentially increasing talk time. At light loads, the NCP6360 automatically enters PFM mode to optimize converter efficiency, while operating at a 6 MHz switching frequency in PWM mode.

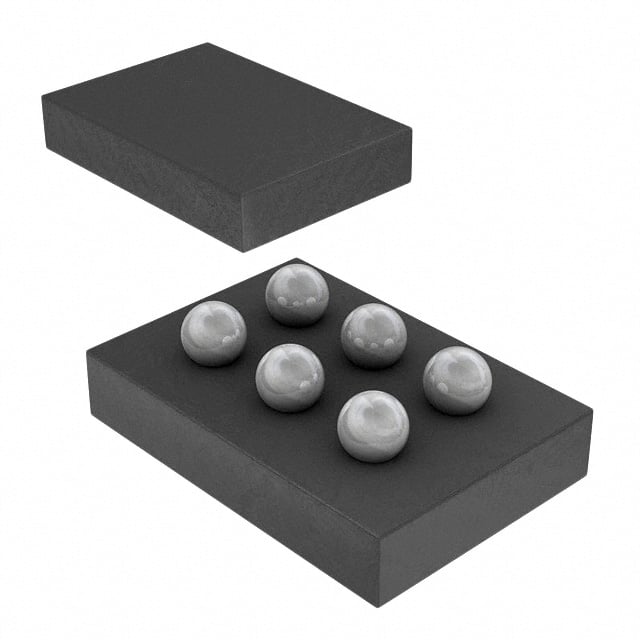

Synchronous rectification is employed for improved system efficiency. The NCP6360 is housed in a compact, low-profile 1.5 x 1.0 mm CSP-6 package, making it suitable for space-constrained designs. It includes thermal protections to prevent IC damage and operates within an ambient temperature range of -40°C to 85°C.
Typical applications include 3G/4G wireless systems, smart phones, phablets, and webtablets. The converter requires external components such as a 470 nH inductor and a 4.7 µF capacitor for optimized footprint and solution thickness.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2.7 V to 5.5 V.
The output voltage can be adjusted from 0.6 V to 3.4 V.
The maximum output current is 800 mA.
The switching frequency is 6 MHz.
The operating temperature range is -40°C to 85°C.
It is in a 6-WLCSP (1.0x1.5) package.
The device is RoHS3 Compliant.
