NCP6343SFCCT1G The ON Semiconductor NCP6343SFCCT1G is a synchronous buck converter designed for portable applications. It delivers up to 3.0 A with a programmable output voltage and operates at a 3 MHz switching frequency.
Mfr Part #:

NCP6343SFCCT1G

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor NCP6343SFCCT1G is a synchronous buck converter designed for portable applications. It delivers up to 3.0 A with a programmable output voltage and operates at a 3 MHz switching frequency.
✓ Total Stock: 62,709 pcs
$ Price Range: $1.08

NCP6343SFCCT1G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
62,709 pcs
On Request
62709 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NCP6343SFCCT1G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Function
Input Voltage
Mounting Type
Number of Outputs
Output Configuration
Output Type
Output Voltage
Quiescent Current
SVHC Present
Supplier Device Package
Supplier Package
Synchronous Rectifier
Topology
Voltage
View Similar Products (0)

NCP6343SFCCT1G Description

Short technical summary and product information.

The NCP6343SFCCT1G from ON Semiconductor is a synchronous buck converter optimized for portable applications powered by single-cell Li-Ion or three-cell Alkaline/NiCd/NiMH batteries. This device can deliver up to 3.0 A with a programmable output voltage ranging from 0.6 V to 1.4 V in 6.25 mV steps.



It features a 3 MHz switching frequency, which allows for the use of small external components, contributing to a compact solution. The converter supports automatic PWM/PFM transitions to improve overall solution efficiency and offers an ultra-low 0.8 µA off-mode current and low 35 µA quiescent current. An I2C control interface is included for interrupt and dynamic voltage scaling support.

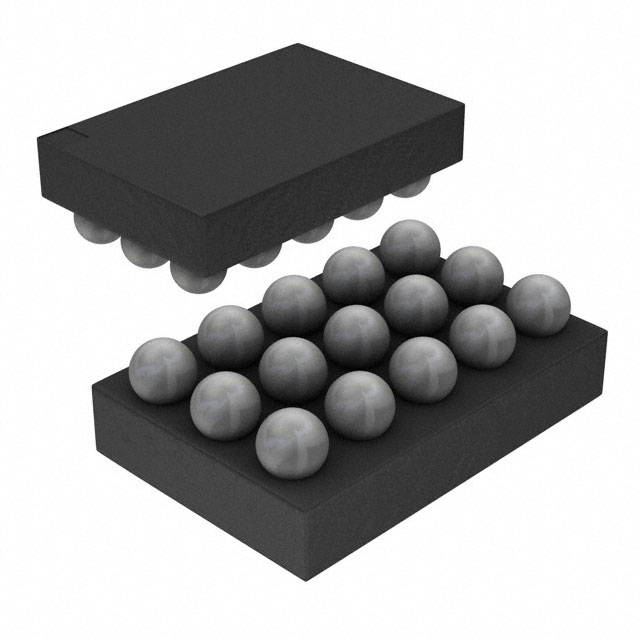

The NCP6343SFCCT1G is housed in a space-saving, low-profile 1.99 x 1.34 mm CSP-15 package, suitable for surface mounting. It is designed for applications such as smartphones and webtablets, where power efficiency and small footprint are critical.

NCP6343SFCCT1G Quick Information

Product Type: DC DC Switching Regulator
Series: NCP6343
Canonical Name: NCP6343 Synchronous Buck Converter
Subcategory: DC-DC Switching Regulator

NCP6343SFCCT1G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

NCP6343SFCCT1G Estimated Pricing

Qty Low High
1+ $1.08 $1.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

NCP6343SFCCT1G Features

  • Synchronous buck converter for portable applications.
  • 3.0 A output current capability.
  • Programmable output voltage from 0.6 V to 1.4 V.
  • 3 MHz switching frequency for small footprint.
  • 15-WLCSP package for surface mounting.

NCP6343SFCCT1G Applications

  • Optimized for portable electronics.
  • Suitable for Li-Ion battery powered devices.
  • Used in smartphones and webtablets.
  • Transient load helper functionality.

NCP6343SFCCT1G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range?

2.3V to 5.5V.

What is the output voltage range?

0.6V to 1.4V programmable in 6.25mV steps.

What is the maximum output current?

3A.

What is the switching frequency?

3MHz.

What is the package type?

15-WLCSP (1.34x1.99mm).

What is the quiescent current?

35µA.

Is it a synchronous buck regulator?

Yes.
