Mfr Part #:

NCP6132ADMNR2G

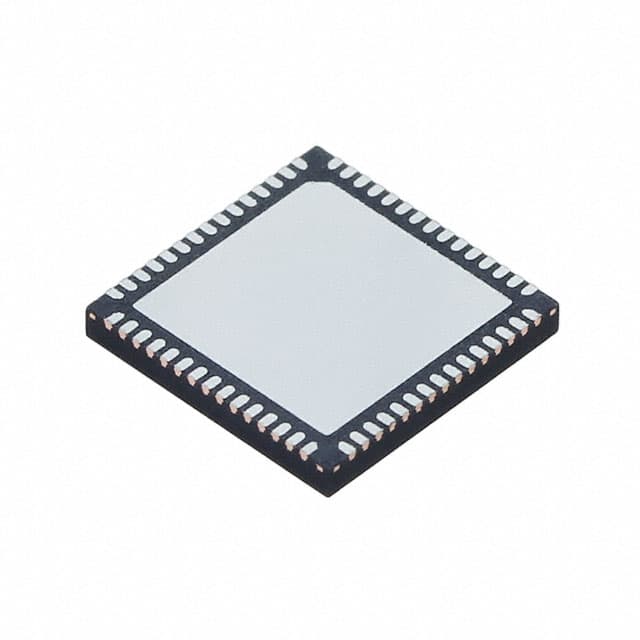

The ON Semiconductor NCP6132ADMNR2G is a dual output controller designed for Intel IMVP-7 and VR12 compatible CPUs. It offers a voltage range of 0.25V to 1.52V and is available in a Surface Mount package.

✓ Total Stock: 2,461 pcs

$ Price Range: $0.75

NCP6132ADMNR2G Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Smaxon Electronics ✓ Non-Authorised Inventory information	2,461 pcs On Request	2461 pcs	On Request	1	On Request	On Request	1327+	On Request	On Request

NCP6132ADMNR2G Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Special Purpose Regulators
Manufacturer Name	On Semiconductor
Applications	Controller, Intel IMVP-7, VR12™
Mounting Type	Surface Mount
Number of Outputs	2
Supplier Device Package	60-QFN (7x7)
Supplier Package	60-QFN (7x7)
Voltage	0.25V to 1.52V

View Similar Products (0)

NCP6132ADMNR2G Description

Short technical summary and product information.

The NCP6132ADMNR2G from ON Semiconductor is a dual output controller optimized for Intel IMVP-7 and VR12 compatible CPUs, suitable for both desktop and notebook applications. This device integrates three internal MOSFET drivers, configurable for core or auxiliary phases, providing a three-phase CPU voltage regulator and a two-phase auxiliary voltage regulator.

Key features include current mode dual-edge modulation for fast transient response, dual high-performance operational error amplifiers, and a digital soft start ramp for both rails. It supports adaptive voltage positioning and input voltage feed-forward. The controller operates within a voltage range of 0.25V to 1.52V and is housed in a 60-QFN (7x7) package, designed for surface mounting.

This controller utilizes true differential voltage sensing and differential inductor DCR current sensing. It also features phase-to-phase dynamic current balancing and "lossless" DCR current sensing for accurate current management. The device includes over-voltage protection (OVP), under-voltage protection (UVP), and over-current protection (OCP), along with dual power good outputs.

NCP6132ADMNR2G Quick Information

Product Type: Special Purpose Regulator

Series: NCP6132

Canonical Name: NCP6132ADMNR2G Dual Output 3 Phase & 2 Phase Controller

Subcategory: Special Purpose

NCP6132ADMNR2G Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

NCP6132ADMNR2G Estimated Pricing

Qty	Low	High
1+	$0.75	$0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

NCP6132ADMNR2G Features

Dual output controller for Intel CPUs.
Optimized for VR12 and IMVP-7 specifications.
Supports 0.25V to 1.52V output voltage.
Surface Mount 60-QFN (7x7) package.
Fast transient response with dual-edge PWM.

NCP6132ADMNR2G Applications

Desktop processor power regulation.
Notebook processor power regulation.
CPU voltage regulator applications.
Intel VR12 compatible systems.

NCP6132ADMNR2G FAQs

5 frequently asked questions generated from this part’s specifications.

What is the voltage range for the NCP6132ADMNR2G?

The voltage range is 0.25V to 1.52V.

What type of package is the NCP6132ADMNR2G in?

It is in a 60-VFQFN Exposed Pad package.

How is the NCP6132ADMNR2G mounted?

It is designed for Surface Mount.

What applications is the NCP6132ADMNR2G designed for?

It is designed for Controller, Intel IMVP-7, and VR12™ applications.

How many outputs does the NCP6132ADMNR2G have?

It has 2 outputs.

NCP6132ADMNR2G Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.

View All Alternate Parts

NCP6132AMNR2G

On Semiconductor

The NCP6132AMNR2G is a dual output controller from On Semiconductor, designed for Intel IMVP-7 and VR12 compatible CPUs. It operates within a voltage range of 0.25V to 1.52V.

View Part

NCP6132BMNR2G
