The NCP605MN18T2G from onsemi is a low quiescent current, CMOS linear voltage regulator designed for space-constrained and battery-powered applications. It provides a stable 1.8V fixed output voltage with a maximum output current of 500mA. Key features include low noise operation, high PSRR, and integrated short circuit and thermal protection.
This regulator is suitable for applications requiring a reliable and efficient power source. It operates with an input voltage up to 6V and features a low dropout voltage of 0.3V at 500mA. The device is packaged in a 6-VDFN exposed pad, suitable for surface mount assembly.
Typical applications include hard disk drives, notebook computers, battery-powered electronics, and portable instrumentation. The NCP605 series offers both fixed and adjustable output voltage options, with this specific part providing a fixed 1.8V output. It also includes enhanced ESD ratings for improved robustness.
The NCP605MN18T2G is designed to be used with low-cost ceramic capacitors, simplifying the external component selection. Its low IGND current, independent of load, further contributes to power efficiency in battery-operated devices.
The fixed output voltage is 1.8V.
The maximum output current is 500mA.
The maximum dropout voltage is 0.3V at 500mA load.
The typical quiescent current is 180µA.
The operating junction temperature range is -40°C to 125°C.

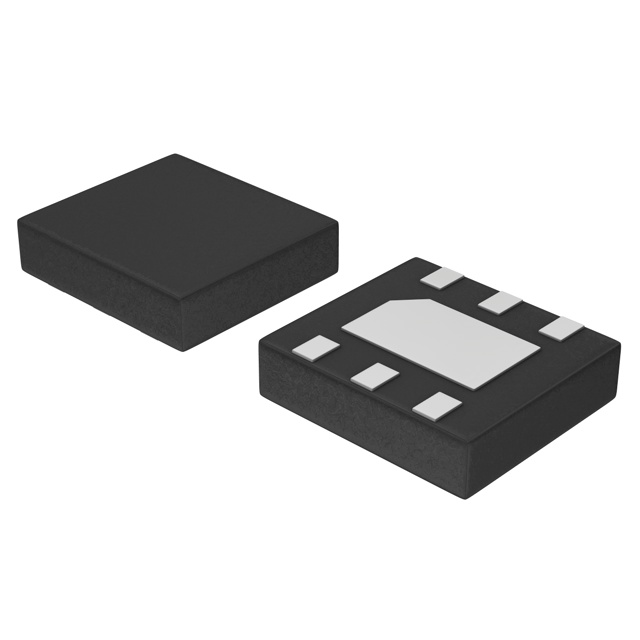

The package is a 6-VDFN exposed pad for surface mount.
It has a 4kV Human Body Model and 200V Machine Model ESD ratings.
