| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
49,560 pcs
|
49560 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| PSRR | |
| Protection Features | |
| SVHC Present | |
| Tape & Reel | |
| Voltage Dropout (Max) |
The NCP59744FCTCADJT2G is an adjustable positive linear voltage regulator manufactured by On Semiconductor. This component is designed for applications requiring a stable and adjustable output voltage within a specific range. It supports an input voltage up to 5.5V and can provide an output voltage adjustable from 0.8V to 3.6V.
With a maximum output current of 3A, the NCP59744FCTCADJT2G is suitable for power-hungry applications. It features quiescent current of 2mA and supply current also at a maximum of 2mA, contributing to power efficiency. The device includes essential protection features such as over current, over temperature, and under voltage lockout (UVLO) to ensure reliability and system safety.

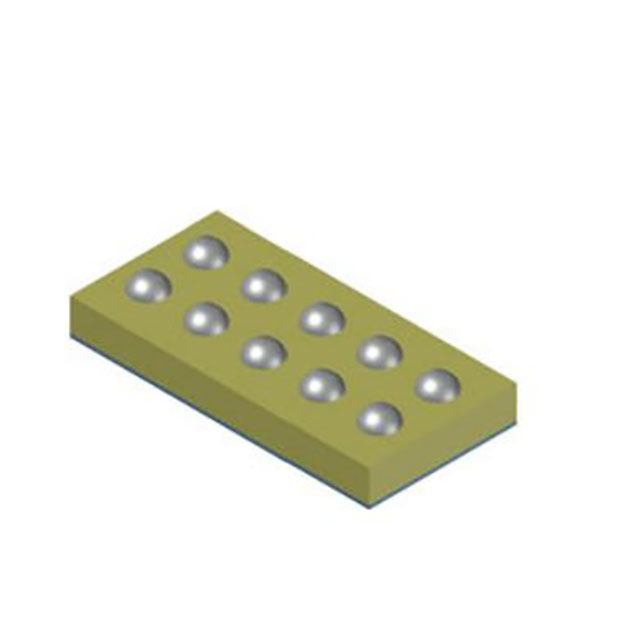

This voltage regulator is available in a 10-XFBGA, WLCSP package, designed for surface mount applications. The operating temperature range is from -40°C to 125°C (TJ), making it suitable for demanding environmental conditions. Control features include Enable, Power Good, and Soft Start functionalities, providing flexibility in system design and power sequencing.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum input voltage is 5.5V.
The output voltage is adjustable from 0.8V to 3.6V.
The maximum dropout voltage is 1.5V at 3A output current.
The operating junction temperature range is -40°C to 125°C.
It is available in 10-XFBGA or WLCSP packages.
It includes over current, over temperature, and under voltage lockout protection.
It features Enable, Power Good, and Soft Start control.
