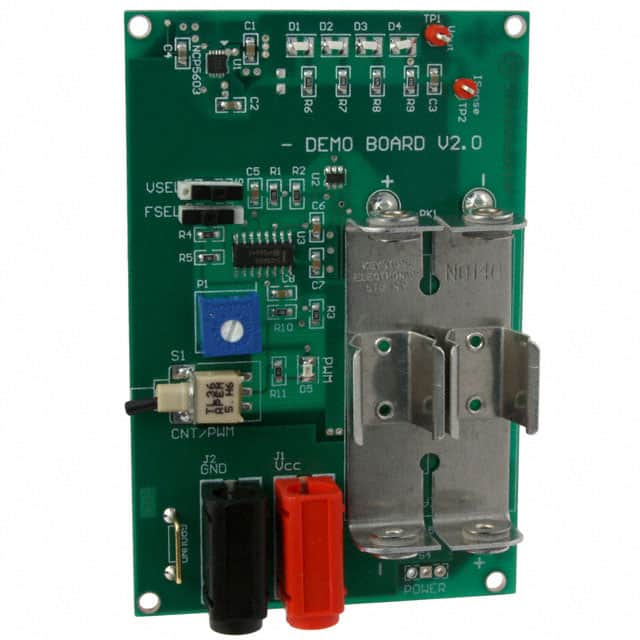

The NCP5603GEVB evaluation board is designed to test and demonstrate the capabilities of the NCP5603G HI FREQ LED driver IC from On Semiconductor. This board supports an output voltage range of 4.5V to 5V and can deliver up to 160mA of current.
Key features of this evaluation board include dimmable functionality, allowing for brightness control of connected LEDs. The board can be powered by either an external DC power supply or two AA dry cell batteries. System operation allows for selection of output voltage and operating frequency, as well as normal or PWM mode.
This evaluation board is suitable for engineers and developers working with LED lighting applications who need to prototype and test LED driver performance. Its features facilitate the evaluation of dimming capabilities and power management for various LED-driven projects.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage can be selected between 4.5V and 5V.
The evaluation board can provide up to 160mA of output current.
Yes, the board features dimmable functionality.
The board can be powered by an external DC power supply or two 1.5V AA dry cell batteries.
The operating frequency can be selected as either 260kHz or 630kHz.
