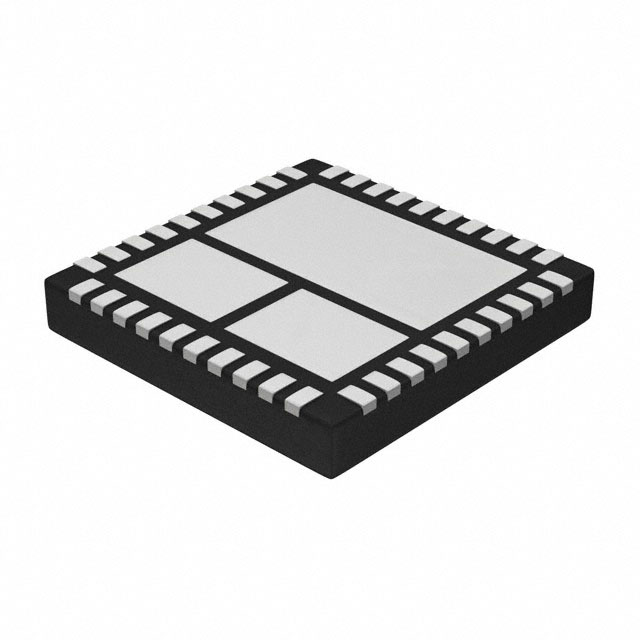

The ON Semiconductor NCP5369NMNTXG is an integrated circuit designed as a half bridge driver, specifically for synchronous buck converter applications. This component is capable of handling an output current of 35A and a peak output current of 50A.
Key electrical characteristics include a load voltage range of 4.5V to 25V and a supply voltage range of 4.5V to 5.5V. The device operates within a wide temperature range of -55°C to 150°C (TJ).
Featuring fault protection for over temperature, shoot-through, and UVLO, along with a bootstrap circuit and status flag, this driver is built for robust performance. It utilizes Power MOSFET technology and is supplied in a 40-VFQFN exposed pad package, suitable for surface mounting.
The NCP5369NMNTXG is packaged on tape and reel, with the supplier device package specified as 40-QFN (6x6). Its PWM interface and inductive load type make it suitable for various power management designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 4.5V to 5.5V.
It comes in a 40-VFQFN Exposed Pad package (40-QFN 6x6).
The operating temperature range is -55°C to 150°C (TJ).
The nominal output current per channel is 35A.
It includes over-temperature, shoot-through, and UVLO protection.
It uses a PWM interface.
It uses Power MOSFET technology.
