NCP5212AMNTXG The ON Semiconductor NCP5212AMNTXG is a single synchronous step-down switching controller. It operates with an input voltage range of 4.5V to 27V and provides an adjustable output voltage from 0.8V to 3.3V.
Mfr Part #:

NCP5212AMNTXG

Available from 4 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor NCP5212AMNTXG is a single synchronous step-down switching controller. It operates with an input voltage range of 4.5V to 27V and provides an adjustable output voltage from 0.8V to 3.3V.
✓ Total Stock: 14,838 pcs
$ Price Range: $0.78

NCP5212AMNTXG Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NCP5212AMNTXG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Sync
Control Features
Frequency
Function
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Current
Output Phases
Output Type
Supplier Device Package
Synchronous Rectifier
Topology
Voltage
View Similar Products (0)

NCP5212AMNTXG Description

Short technical summary and product information.

The NCP5212AMNTXG from ON Semiconductor is a high-efficiency synchronous step-down controller designed for high-performance battery-powered systems. It features a wide input voltage range of 4.5V to 27V and an adjustable output voltage range of 0.8V to 3.3V.



This controller integrates a PWM controller and supports interleaved operation for two devices. Key features include a 0.8V reference with 0.8% accuracy, skip mode for power saving at light loads, lossless inductor current sensing, and programmable transient-response enhancement (TRE) control. It also incorporates adaptive voltage positioning (AVP), input supply feedforward control, internal soft-start, integrated output discharge, and adaptive gate drivers.

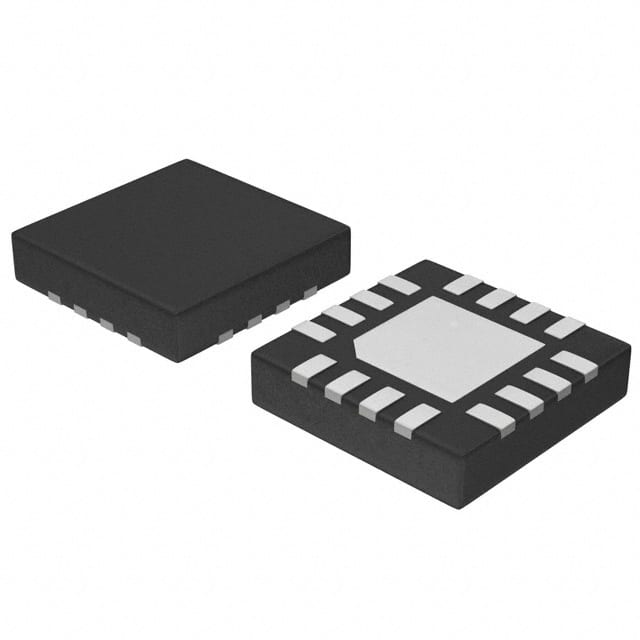

Protection features include overvoltage, undervoltage, overcurrent protection, and thermal shutdown. The device is packaged in a 16-QFN (4x4) with an exposed pad, suitable for surface mounting. Typical applications include notebook computers and general system power.



The operating temperature range is -40°C to 85°C (TA) with a switching frequency of 300kHz. Control features include current limit, enable, and power good indication.

NCP5212AMNTXG Quick Information

Product Type: Switching Controller
Series: NCP5212
Canonical Name: NCP5212AMNTXG Single Synchronous Step-Down Controller
Subcategory: PMIC - Power Management ICs

NCP5212AMNTXG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NCP5212AMNTXG Estimated Pricing

Qty Low High
1+ $0.78 $0.78

Estimated market price range - modelled values for guidance only, not live distributor offers.

NCP5212AMNTXG Features

  • Synchronous step-down controller for high efficiency.
  • Wide input voltage range from 4.5V to 27V.
  • Adjustable output voltage from 0.8V to 3.3V.
  • Integrated overvoltage and overcurrent protection.
  • Packaged in a 16-QFN (4x4) for surface mounting.

NCP5212AMNTXG Applications

  • Ideal for battery-powered portable devices.
  • Used in point-of-load regulation.
  • Suitable for industrial power supplies.
  • Applicable in automotive electronics.

NCP5212AMNTXG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range?

4.5V to 27V.

What is the output voltage range?

0.8V to 3.3V adjustable.

What is the switching frequency?

300 kHz typical.

What is the operating temperature range?

-40°C to 85°C (ambient).

What package is the device available in?

16-QFN (4x4mm) with exposed pad, surface mount.

What control features does it have?

Current limit, enable, and power good.

Is it a synchronous rectifier?

Yes, it has a synchronous rectifier.
