| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24,000 pcs
|
24000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Current | |
| Input Voltage | |
| Junction Temperature | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| Output Voltage | |
| PSRR | |
| Power Dissipation | |
| Protection Features | |
| Storage Temperature | |
| Supplier Device Package | |
| Voltage | |
| Voltage Dropout (Max) |
The NCP4641H080T1G is a CMOS linear voltage regulator designed by On Semiconductor. It provides a stable 8V output voltage with a maximum output current of 150mA. The device features a wide operating input voltage range from 4V to 36V, making it suitable for various power supply applications.
Key electrical characteristics include a low quiescent current of 20 µA, ±2% output voltage accuracy, and line regulation of 0.05%/V. For enhanced reliability, the NCP4641H080T1G incorporates protection features such as peak current limit, short circuit current limit, and thermal shutdown.

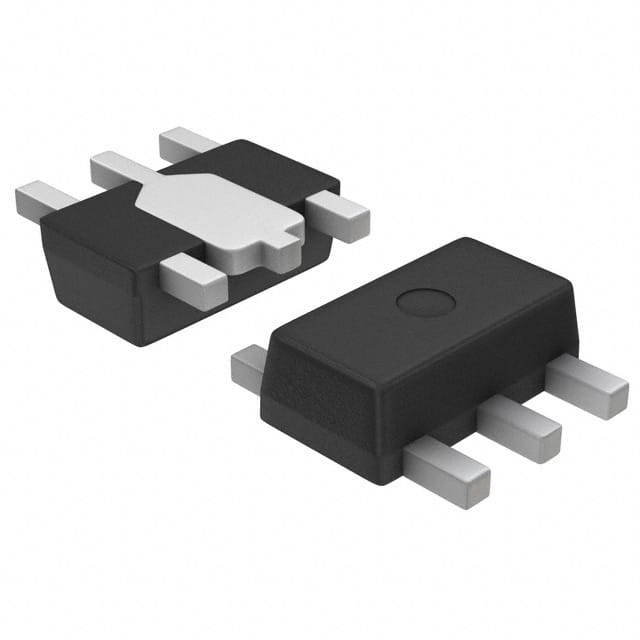

This voltage regulator is available in a surface mount SOT-89-5 package. Its robust design and wide operating temperature range of -40°C to 150°C make it a reliable choice for demanding applications in consumer electronics, automotive systems, and office equipment.
Typical applications include power sources for home appliances, car audio equipment, navigation systems, notebooks, digital TVs, and office machines like copiers and printers.
| Qty | Low | High |
|---|---|---|
| 1+ | $23.40 | $23.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The NCP4641H080T1G provides a fixed output voltage of 8V.
The NCP4641H080T1G can supply a minimum of 150mA output current.
The operating input voltage range for the NCP4641H080T1G is from 4V to 36V.
This device includes over current, over temperature, and short circuit protection features.
The NCP4641H080T1G operates within a temperature range of -40°C to 150°C.
The NCP4641H080T1G is supplied in a SOT-89-5 package.
