NCP45651IMNTWG The ON Semiconductor NCP45651IMNTWG is a general purpose load switch designed for power distribution applications. It offers a high-side N-channel output with a current rating of 24A.
Mfr Part #:

NCP45651IMNTWG

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor NCP45651IMNTWG is a general purpose load switch designed for power distribution applications. It offers a high-side N-channel output with a current rating of 24A.
✓ Total Stock: 9,000 pcs
$ Price Range: $0.32

NCP45651IMNTWG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
9,000 pcs
On Request
9000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NCP45651IMNTWG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Fault Protection
Features
Input Type
Interface
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Ratio
Rds On (Typ)
Supplier Device Package
Supplier Package
Switch Type
Voltage
View Similar Products (0)

NCP45651IMNTWG Description

Short technical summary and product information.

The ON Semiconductor NCP45651IMNTWG is a load switch belonging to the ECOSWITCH 5M series, operating at 13.5V. This device is designed for power distribution and load driving applications, featuring a high-side N-channel output configuration.



Key electrical specifications include a maximum operating voltage of 5.5V, a minimum input voltage of 3V, and a substantial current handling capability of 24A. The switch exhibits a low on-resistance (Rds On) of 6.7mOhm typically, minimizing power loss. It operates with a simple On/Off interface and includes fault protection mechanisms such as current limiting, over-temperature protection, short circuit protection, and undervoltage lockout (UVLO).

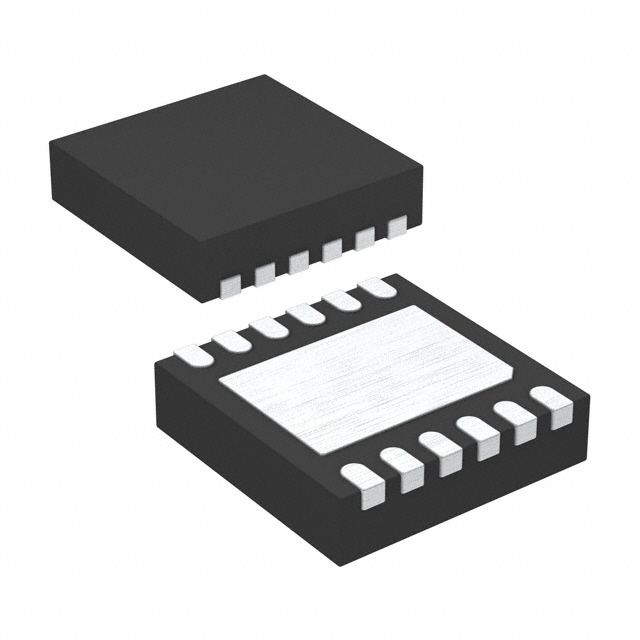

This load switch is housed in a 12-VFDFN exposed pad package, designed for surface mounting. The operating temperature range is from -40°C to 85°C (TA). Additional features include load discharge and slew rate control, making it suitable for various power management scenarios.

NCP45651IMNTWG Quick Information

Product Type: Load Switch
Series: ECOSWITCH 5M
Canonical Name: NCP45651IMNTWG Load Switch
Subcategory: Power Distribution Switches, Load Drivers

NCP45651IMNTWG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NCP45651IMNTWG Estimated Pricing

Qty Low High
1+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

NCP45651IMNTWG Features

  • High-side N-channel load switch.
  • 24A current capability.
  • Low 6.7mOhm typical Rds On.
  • Surface mount 12-VFDFN package.
  • Integrated fault protection features.

NCP45651IMNTWG Applications

  • Suitable for power distribution.
  • Used in load driving circuits.
  • Enables controlled power switching.
  • Protects against overcurrent faults.

NCP45651IMNTWG FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum current rating for the NCP45651IMNTWG?

The NCP45651IMNTWG has a current rating of 24A.

What is the operating voltage range of the NCP45651IMNTWG?

The operating voltage range for the NCP45651IMNTWG is 3V to 5.5V.

What is the typical Rds On for the NCP45651IMNTWG?

The typical Rds On for the NCP45651IMNTWG is 6.7mOhm.

What type of package is the NCP45651IMNTWG in?

The NCP45651IMNTWG is in a 12-VFDFN exposed pad package.

How is the NCP45651IMNTWG mounted?

The NCP45651IMNTWG is a surface mount device.

What is the operating temperature range for this load switch?

The operating temperature range is -40°C to 85°C (TA).
