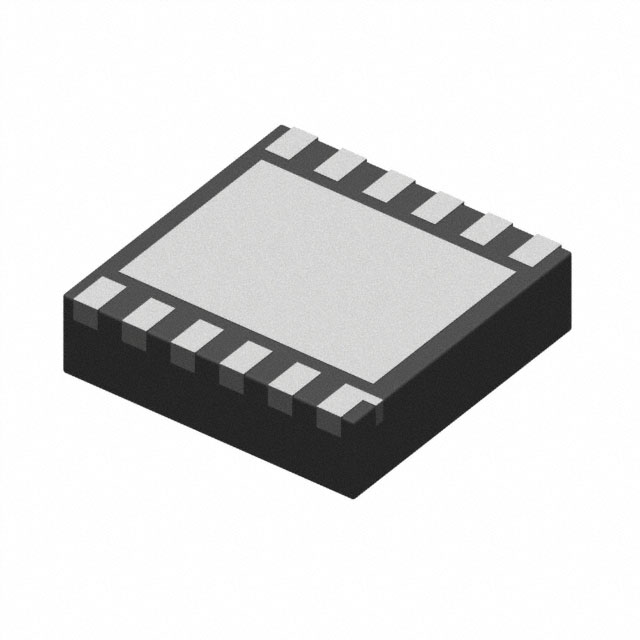

NCP45541IMNTWG-H The ON Semiconductor NCP45541IMNTWG-H is an N-channel load switch designed for efficient power domain switching. It offers features like soft-start and power good signaling.
Mfr Part #:

NCP45541IMNTWG-H

Available from 3 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor NCP45541IMNTWG-H is an N-channel load switch designed for efficient power domain switching. It offers features like soft-start and power good signaling.
✓ Total Stock: 111,285 pcs
$ Price Range: $0.32

NCP45541IMNTWG-H Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
103,448 pcs
On Request
103448 pcs On Request 1 On Request On Request On Request On Request On Request
Seba Components ✓
Non-Authorised Inventory information
6,000 pcs
On Request
6000 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,837 pcs
On Request
1837 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NCP45541IMNTWG-H Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Features
Input Type
Interface
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Ratio
Rds On (Typ)
Supplier Device Package
Supply Voltage
Switch Type
Voltage
View Similar Products (0)

NCP45541IMNTWG-H Description

Short technical summary and product information.

The ON Semiconductor NCP45541IMNTWG-H is an advanced load switch providing efficient power domain switching with integrated control functionality. It features an N-channel MOSFET with low on-resistance, suitable for applications requiring inrush current limiting via soft-start.



Key electrical specifications include an input voltage range of 0.5 V to 13.5 V and a supply voltage range of 3 V to 5.5 V. The device can handle a maximum output current of 20A and offers a typical on-resistance of 4.8 mOhm. It operates within a temperature range of -40°C to 85°C.



This load switch includes features such as adjustable slew rate control, power good signaling, and load bleed (quick discharge) for system monitoring and control. It is designed for low power consumption and comes in a compact 12-DFN (3x3) package, making it ideal for space-constrained designs.



Typical applications include portable electronics, notebook and tablet computers, telecom, networking, medical, and industrial equipment. The surface mount package and general-purpose switch type facilitate integration into various electronic systems.

NCP45541IMNTWG-H Quick Information

Product Type: Load Switch
Series: ecoSWITCH
Canonical Name: NCP45541 Load Switch
Subcategory: Power Distribution Switches

NCP45541IMNTWG-H Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free

NCP45541IMNTWG-H Estimated Pricing

Qty Low High
1+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

NCP45541IMNTWG-H Features

  • N-channel load switch with low Rds On.
  • Input voltage range 0.5V to 13.5V.
  • Maximum output current of 20A.
  • Features soft-start and power good signal.
  • Compact 12-DFN (3x3) surface mount package.

NCP45541IMNTWG-H Applications

  • Ideal for portable electronics.
  • Suitable for notebook computers.
  • Used in telecom equipment.
  • Applicable for industrial systems.
  • Designed for hot-swap applications.

NCP45541IMNTWG-H FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range for the NCP45541IMNTWG-H?

The input voltage range is 0.5 V to 13.5 V.

What is the maximum output current of the NCP45541IMNTWG-H?

The maximum output current is 20 A.

What is the typical on-resistance of this load switch?

The typical on-resistance is 4.8 mOhm.

What is the operating temperature range for the NCP45541IMNTWG-H?

The operating temperature range is -40°C to 85°C.

What package type is the NCP45541IMNTWG-H supplied in?

It is supplied in a 12-DFN (3x3) package.

Does the NCP45541IMNTWG-H have a Power Good signal?

Yes, it features a Power Good signal.

Is the NCP45541IMNTWG-H RoHS compliant?

The RoHS status is RoHS3 Compliant.
