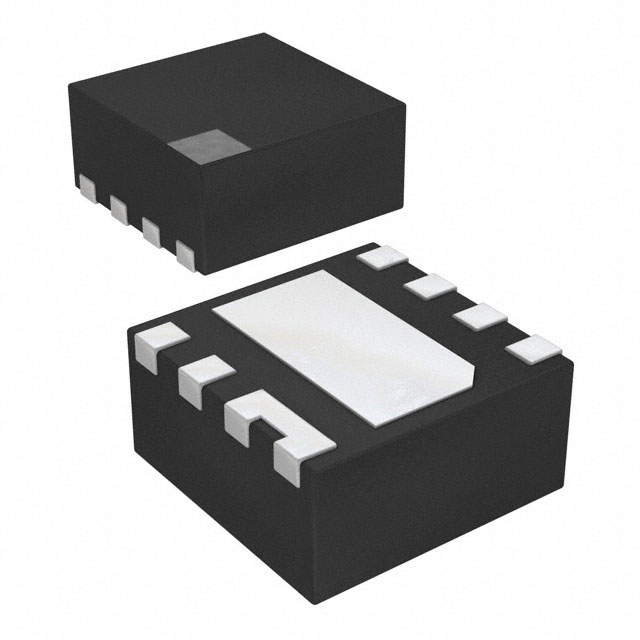

NCP45525IMNTWG-H The ON Semiconductor NCP45525IMNTWG-H is a controlled load switch designed for efficient power domain switching. It features a low Rds On and a wide input voltage range.
Mfr Part #:

NCP45525IMNTWG-H

Available from 3 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor NCP45525IMNTWG-H is a controlled load switch designed for efficient power domain switching. It features a low Rds On and a wide input voltage range.
✓ Total Stock: 159,565 pcs
$ Price Range: $0.32

NCP45525IMNTWG-H Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
152,145 pcs
On Request
152145 pcs On Request 1 On Request On Request On Request On Request On Request
Seba Components ✓
Non-Authorised Inventory information
6,000 pcs
On Request
6000 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,420 pcs
On Request
1420 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NCP45525IMNTWG-H Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Features
Input Type
Interface
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Ratio
Rds On (Typ)
SVHC Present
Supplier Device Package
Supplier Package
Switch Type
Voltage
View Similar Products (0)

NCP45525IMNTWG-H Description

Short technical summary and product information.

The NCP45525IMNTWG-H from ON Semiconductor is an advanced controlled load switch offering efficient power management solutions. This device integrates control and driver functionality with a low on-resistance N-channel MOSFET in a compact 8-DFN (2x2) package.



Key electrical specifications include an input voltage range of 0.5 V to 13.5 V, a maximum continuous current of 6 A, and a typical Rds On of 18 mOhm. The switch operates with a supply voltage range of 3.0 V to 5.5 V and features an On/Off interface.



Designed for applications requiring low power consumption and a small footprint, the NCP45525IMNTWG-H is ideal for power management and hot-swap applications. Its features include slew rate control for soft-start functionality. The component is surface-mounted and operates within an ambient temperature range of -40°C to 85°C.



This Pb-Free device is packaged in an 8-VFDFN exposed pad configuration, suitable for various electronic systems.

NCP45525IMNTWG-H Quick Information

Product Type: Load Switch
Canonical Name: NCP45525IMNTWG-H Controlled Load Switch
Subcategory: Power Distribution Switches

NCP45525IMNTWG-H Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

NCP45525IMNTWG-H Estimated Pricing

Qty Low High
1+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

NCP45525IMNTWG-H Features

  • Controlled load switch with slew rate control.
  • Wide input voltage range from 0.5V to 13.5V.
  • High current capability up to 6A.
  • Low typical Rds On of 18mOhm.
  • Compact 8-DFN (2x2) surface mount package.

NCP45525IMNTWG-H Applications

  • Ideal for power domain switching.
  • Suitable for hot-swap applications.
  • Used in portable electronics.
  • Applicable for telecom equipment.
  • Designed for notebook computers.

NCP45525IMNTWG-H FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range?

0.5 V to 13.5 V.

What is the supply voltage range?

3.0 V to 5.5 V.

What is the maximum continuous current?

6 A.

What is the typical on-resistance?

18 mOhm.

What is the operating temperature range?

-40°C to 85°C.

What is the package type?

8-DFN (2x2) surface mount.

Is the device lead-free?

Yes, it is a Pb-Free device.
