NCP4545IMNTWG-L The NCP4545IMNTWG-L is a Power Distribution Switch from On Semiconductor. It features a 10.5A maximum output current and a typical RdsOn of 4.9mOhm.
Mfr Part #:

NCP4545IMNTWG-L

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The NCP4545IMNTWG-L is a Power Distribution Switch from On Semiconductor. It features a 10.5A maximum output current and a typical RdsOn of 4.9mOhm.
✓ Total Stock: 77,126 pcs
$ Price Range: $0.32

NCP4545IMNTWG-L Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
77,126 pcs
On Request
77126 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NCP4545IMNTWG-L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Features
Input Type
Interface
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Ratio
Rds On (Typ)
Supplier Device Package
Switch Type
Voltage
View Similar Products (0)

NCP4545IMNTWG-L Description

Short technical summary and product information.

The NCP4545IMNTWG-L is an N-Channel Power Distribution Switch manufactured by On Semiconductor. This device is designed for general-purpose applications and operates as a high-side switch.



Key electrical specifications include a maximum output current of 10.5A and a typical on-resistance (RdsOn) of 4.9mOhm. The switch type is general purpose, with an input type that is non-inverting and an interface for on/off control. The load voltage range is specified from 3V to 5.5V, while the supply voltage is not required.

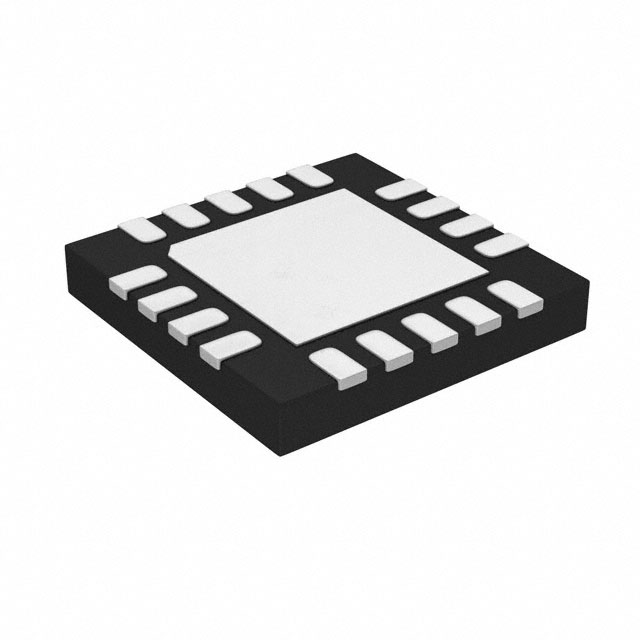

This component features slew rate control for improved performance. It is housed in an 18-QFN (3x3) package and is designed for surface mount installation. The operating temperature range is from 0°C to 70°C (TA).



The NCP4545IMNTWG-L is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. It is also REACH unaffected.

NCP4545IMNTWG-L Quick Information

Product Type: Power Distribution Switch Load Driver
Series: ecoSWITCH™
Canonical Name: NCP4545IMNTWG-L Power Distribution Switch Load Driver
Subcategory: Load Driver

NCP4545IMNTWG-L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NCP4545IMNTWG-L Estimated Pricing

Qty Low High
1+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

NCP4545IMNTWG-L Features

  • 10.5A maximum output current.
  • Low 4.9mOhm typical on-resistance.
  • Slew rate controlled operation.
  • Surface mount 18-QFN package.
  • RoHS3 compliant.

NCP4545IMNTWG-L Applications

  • Ideal for power distribution.
  • Suitable for load switching.
  • Used in general purpose applications.
  • High-side switching designs.

NCP4545IMNTWG-L FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum output current for the NCP4545IMNTWG-L?

The maximum output current is 10.5A.

What is the typical RdsOn for this power switch?

The typical RdsOn is 4.9mOhm.

What is the operating temperature range?

The operating temperature range is 0°C to 70°C (TA).

What package type is the NCP4545IMNTWG-L available in?

It is available in an 18-QFN (3x3) package and is designed for surface mount.

What is the RoHS status of this component?

The RoHS status is RoHS3 Compliant.
