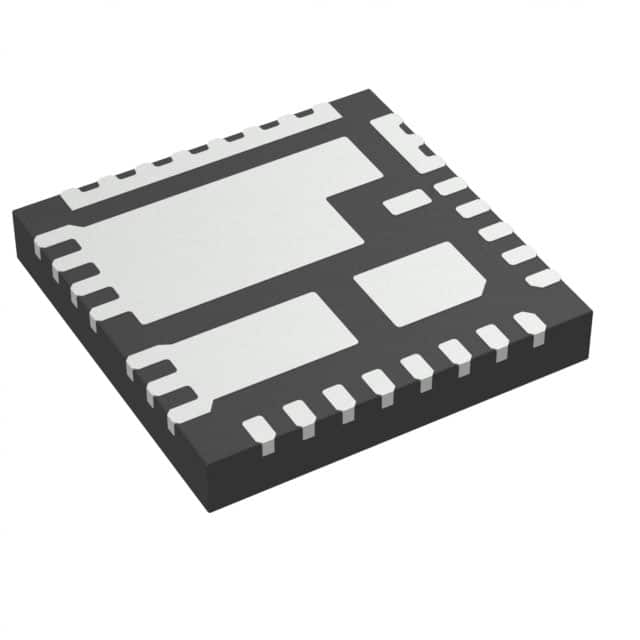

NCP302150MNTWG The On Semiconductor NCP302150MNTWG is an integrated gate driver featuring a MOSFET driver, high-side MOSFET, and low-side MOSFET in a single package. It is optimized for high-current DC-DC buck power conversion applications.
Mfr Part #:

NCP302150MNTWG

Available from 4 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor NCP302150MNTWG is an integrated gate driver featuring a MOSFET driver, high-side MOSFET, and low-side MOSFET in a single package. It is optimized for high-current DC-DC buck power conversion applications.
✓ Total Stock: 333,051 pcs
$ Price Range: $2.01

NCP302150MNTWG Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
310,000 pcs
On Request
310000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
14,297 pcs
On Request
14297 pcs On Request 1 On Request On Request 20+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
7,397 pcs
On Request
7397 pcs On Request 1 On Request On Request 20+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,357 pcs
On Request
1357 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NCP302150MNTWG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Channel Type
Current
Driven Configuration
Gate Type
High Side Voltage
Input Type
Logic Voltage
Mounting Type
Number of Drivers
Operating Temperature
Rise
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

NCP302150MNTWG Description

Short technical summary and product information.

The NCP302150MNTWG from On Semiconductor is an integrated solution designed for high-current DC-DC buck power conversion applications. It combines a MOSFET driver, a high-side MOSFET, and a low-side MOSFET into a single PQFN31 package, reducing board space and parasitics compared to discrete solutions.



This device is capable of handling average currents up to 50 A and switching frequencies up to 2 MHz. It supports 3.3 V or 5 V PWM input and offers options for zero cross detection with 3-level PWM inputs. Key electrical features include an internal bootstrap diode, undervoltage lockout, thermal warning output, and thermal shutdown.



The NCP302150MNTWG is suitable for applications such as notebook, tablet PC, ultrabook, servers, workstations, desktop computers, and small form-factor voltage regulator modules. Its surface mountable PQFN31 (5x5) package facilitates integration into compact designs.



Key specifications include an operating voltage range of 4.5V to 5.5V, logic voltage levels of 0.7V and 2.65V, and a high-side voltage capability of 35V. It offers two drivers with single channel type, N-channel MOSFET gate type, and non-inverting input. The device operates within a temperature range of -40°C to 125°C (TJ).

NCP302150MNTWG Quick Information

Product Type: Gate Driver
Canonical Name: NCP302150 Integrated Driver and MOSFET
Subcategory: Power Management ICs

NCP302150MNTWG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NCP302150MNTWG Estimated Pricing

Qty Low High
1+ $2.01 $2.01

Estimated market price range - modelled values for guidance only, not live distributor offers.

NCP302150MNTWG Features

  • Integrates driver and MOSFETs.
  • Handles average currents up to 50A.
  • Operates at switching frequencies up to 2MHz.
  • Supports 3.3V or 5V PWM input.
  • PQFN31 (5x5) surface mount package.

NCP302150MNTWG Applications

  • Notebook and tablet PC power.
  • Server and workstation DC-DC converters.
  • Desktop computer power supplies.
  • Point-of-load converters.
  • Voltage regulator modules.

NCP302150MNTWG FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum average current capability of the NCP302150MNTWG?

The NCP302150MNTWG is capable of average currents up to 50 A.

What is the maximum switching frequency for the NCP302150MNTWG?

The NCP302150MNTWG can switch at frequencies up to 2 MHz.

What voltage levels are compatible with the PWM input of the NCP302150MNTWG?

The NCP302150MNTWG is compatible with 3.3 V or 5 V PWM input.

What is the operating temperature range for the NCP302150MNTWG?

The operating temperature range is -40°C to 125°C (TJ).

What type of package is the NCP302150MNTWG supplied in?

The NCP302150MNTWG is supplied in a 31-PQFN (5x5) package.

What is the standard package quantity for the NCP302150MNTWG?

The standard package quantity is 3000 pieces on tape and reel.
