| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
184,740 pcs
|
184740 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Current | |
| Halogen Free | |
| Mounting Type | |
| Number of Outputs | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| Output Voltage | |
| PSRR | |
| Protection Features | |
| Quiescent Current | |
| SVHC Present | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |
The NCP186AMX150TAG from ON Semiconductor is a 1A CMOS LDO voltage regulator designed for low voltage applications. It features a fixed output voltage of 1.5V and operates over an input voltage range of 1.8V to 5.5V.
Key electrical specifications include a typical quiescent current of 90 µA, a low dropout voltage of 100 mV at 1A, and high output voltage accuracy of ±1%. The regulator offers protection features such as over-current, over-temperature, and a built-in soft-start circuit to suppress inrush current. It also provides a PSRR of 75 dB at 1kHz.

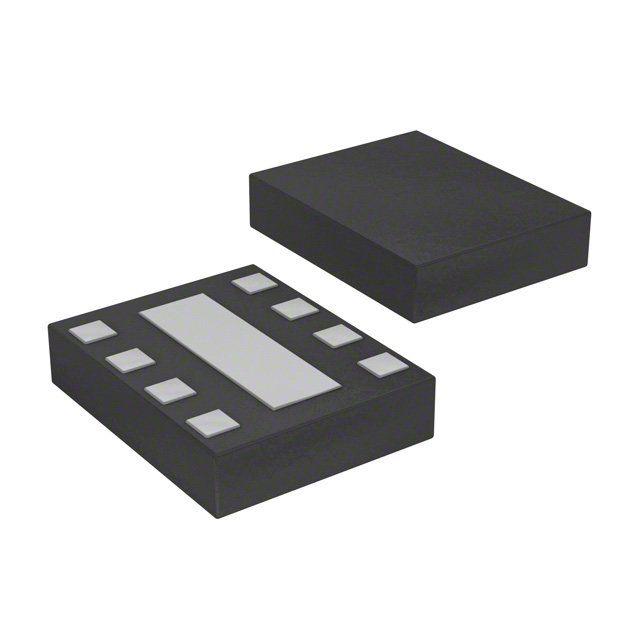

This device is available in an 8-XDFN package with an exposed pad for improved thermal dissipation. It is suitable for surface mount applications and operates within a temperature range of -40°C to 125°C.
Typical applications include battery-powered equipment, portable communication devices, cameras, and image sensors where stable and efficient voltage regulation is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 1.8V to 5.5V.
It is available in an 8-XDFN exposed pad package with dimensions 1.6x1.2mm.
The operating temperature range is -40°C to +125°C.
The output voltage is fixed at 1.5V.
The maximum output current is 1A.
The typical dropout voltage is 100mV at 1A load with VOUT = 3.0V.
It includes over-current protection, over-temperature protection, and soft-start.
