| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,007,000 pcs
|
2007000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Current | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Output Voltage | |
| PSRR | |
| Protection Features | |
| Quiescent Current | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |

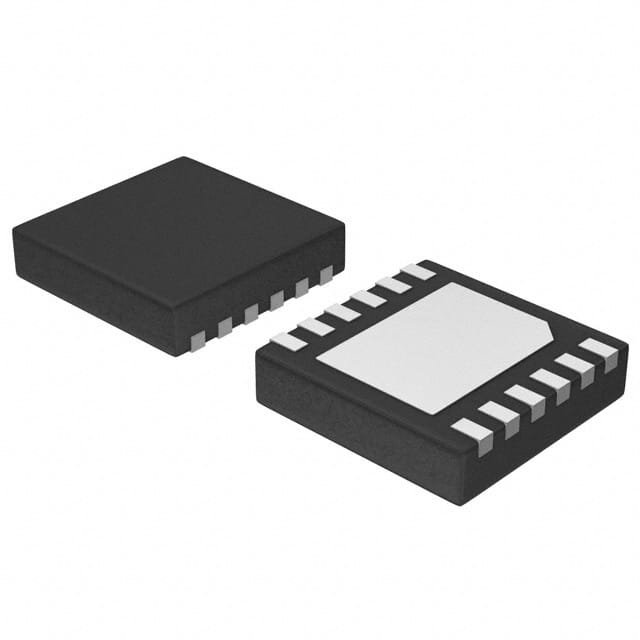

The ON Semiconductor NCP186AMN080TBG is a 1A CMOS LDO regulator designed for low voltage applications. It features an operating input voltage range of 1.8 V to 5.5 V and a fixed output voltage of 0.8 V. The regulator provides a low dropout voltage of 100 mV typically at 1 A and maintains high output voltage accuracy of ±1%.
Key features include over-current and thermal shutdown protection, along with a built-in soft-start circuit to manage inrush current. The NCP186AMN080TBG is stable with small ceramic capacitors, making it suitable for compact designs. It is available in a 12-DFN (4x4mm) package with surface mount mounting type.
Typical applications for this LDO regulator include battery-powered equipment, portable communication devices, cameras, and image sensors where stable and efficient voltage regulation is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1.8V to 5.5V.
Fixed 0.8V.
1A.
100mV typical at 1A output (VOUT=3.0V).
-40°C to 85°C.
12-DFN (4x4mm) with exposed pad.
Over-current and over-temperature protection.
